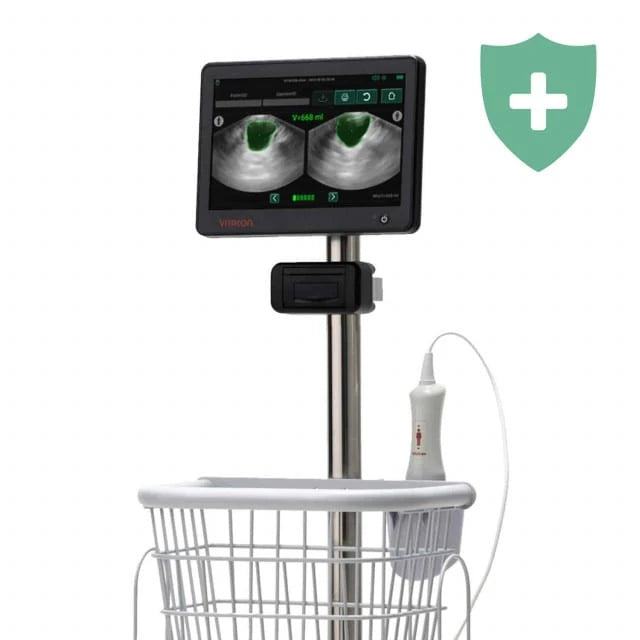

The unique Vitascan cVue bladder scanner from VITACON is a device specifically developed for hospitals, focusing on efficient optimization of patient care. The device features a bright, dimmable display that can be easily operated even with gloves thanks to capacitive touch technology.

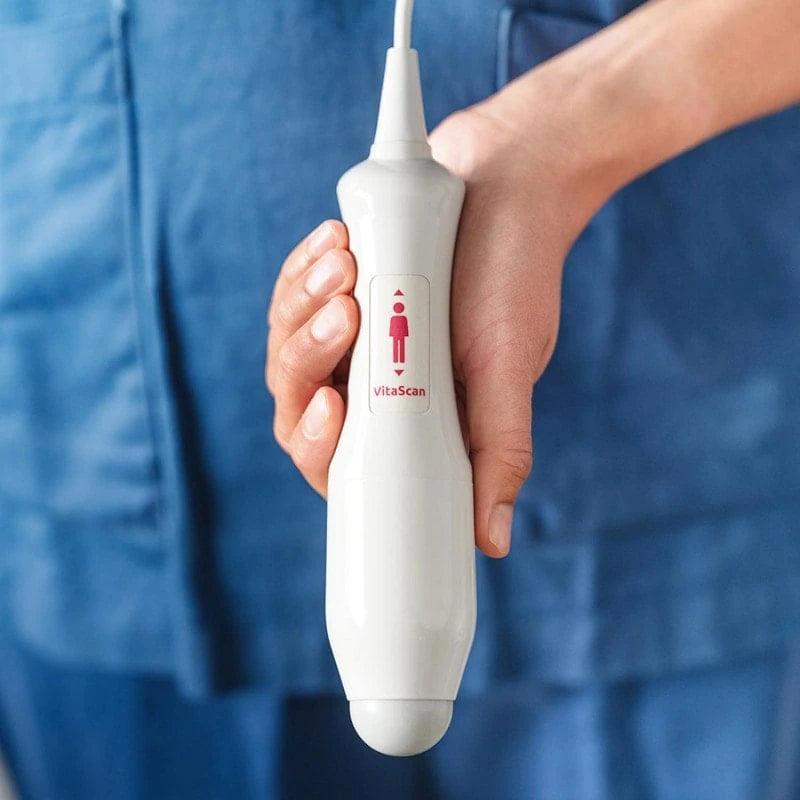

The robust and precise 3D probe of the Vitascan cVue bladder scanner enables first-class measurements of bladder volume and bladder contour. Manual adjustment of scan parameters and easy menu navigation through the optimized user interface make operation significantly easier.

A special feature of the Vitascan cVue bladder scanner is the integrated BladderVue™ signature recognition algorithm. The scanner can also be safely and seamlessly integrated into existing systems. With Wi-Fi connectivity and certificate-based authentication, secure data transfer is ensured.

The durable and advanced battery ensures smooth operation. The device requires no routine calibration. Software updates can be easily performed via USB. The well-known manufacturer VITACON also provides an online learning platform for users and a free EBME course.

With the robust and mobile trolley (optional), the device can be used flexibly. Another advantage is the particularly low operating costs, making the Vitascan cVue bladder scanner a cost-efficient solution.

Product Details

• Vitascan cVue bladder scanner from VITACON
• Portable B-mode ultrasound device for non-invasive measurements
• Provides cross-sectional images of the bladder up to 24 scan layers
• Enhanced bladder detection technology
• Bright (dimmable) display with capacitive touch technology
• Operable with gloves
• Robust and precise 3D probe
• Manual adjustment of scan parameters
• Easy menu navigation through optimized user interface
• Integrated BladderVue™ signature recognition algorithm
• Provides accurate measurements of bladder volume and contour
• Includes integrated probe test program
• Specifically designed for nursing and hospital use
• Efficient optimization of patient care
• Safe and seamless integration possible
• Wi-Fi connection with certificate-based authentication
• Durable and advanced battery power
• With energy-saving automatic shutdown
• Battery is non-toxic and free of heavy metals
• No routine calibration required
• Onboard probe diagnosis and verification test
• Easy software updates via USB
• Very low operating costs
• Includes height-adjustable trolley with probe holder and accessory basket
• Assists in the diagnosis of common urological conditions
• Avoids unnecessary catheterization and reduces infection risk

Indications

• Reduced urine output after surgical procedures
• Enlarged prostate
• Urethral stricture (narrowing of the urethra)
• Neurogenic bladder
• Spinal cord injury
• Stroke
• Impaired cognitive function
• Kidney stones or kidney tumors
• Urinary incontinence

Technical Specifications

• Volume range 0–1000 ml
• Accuracy +/- 7.5% at volumes above 100 ml
• +/- 7.5 ml at volumes below 100 ml
• Probe frequency 3.45 MHz
• Scanning method Sector, 180 degrees
• Rotation positions 12 or 24
• Scan angle 130 degrees
• Display resolution 1280 x 800 pixels
• Display brightness 900–1000 cd/mA
• Drop test ISO 60601-1 standard, 15.3.4.1
• Input voltage 100–240 VAC, 50–60 Hz
• Dimensions (control unit) 26.3 x 22.7 x 12.5 cm
• Weight (control unit) 1.7 kg
• Dimensions (probe) 18.5 x 4.5 x 4.5 cm
• Weight (probe) 380 g
• Water resistance (probe) IPX7 – protected against temporary immersion in water

Scope of Delivery

• Vitascan cVue control unit
• Vitascan v.2 probe
• USB-C cable
• User manual

Trolley must be purchased separately.
