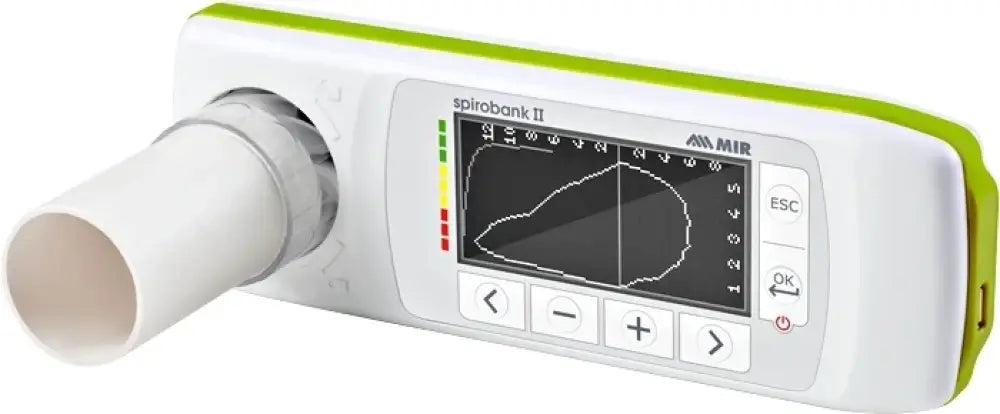

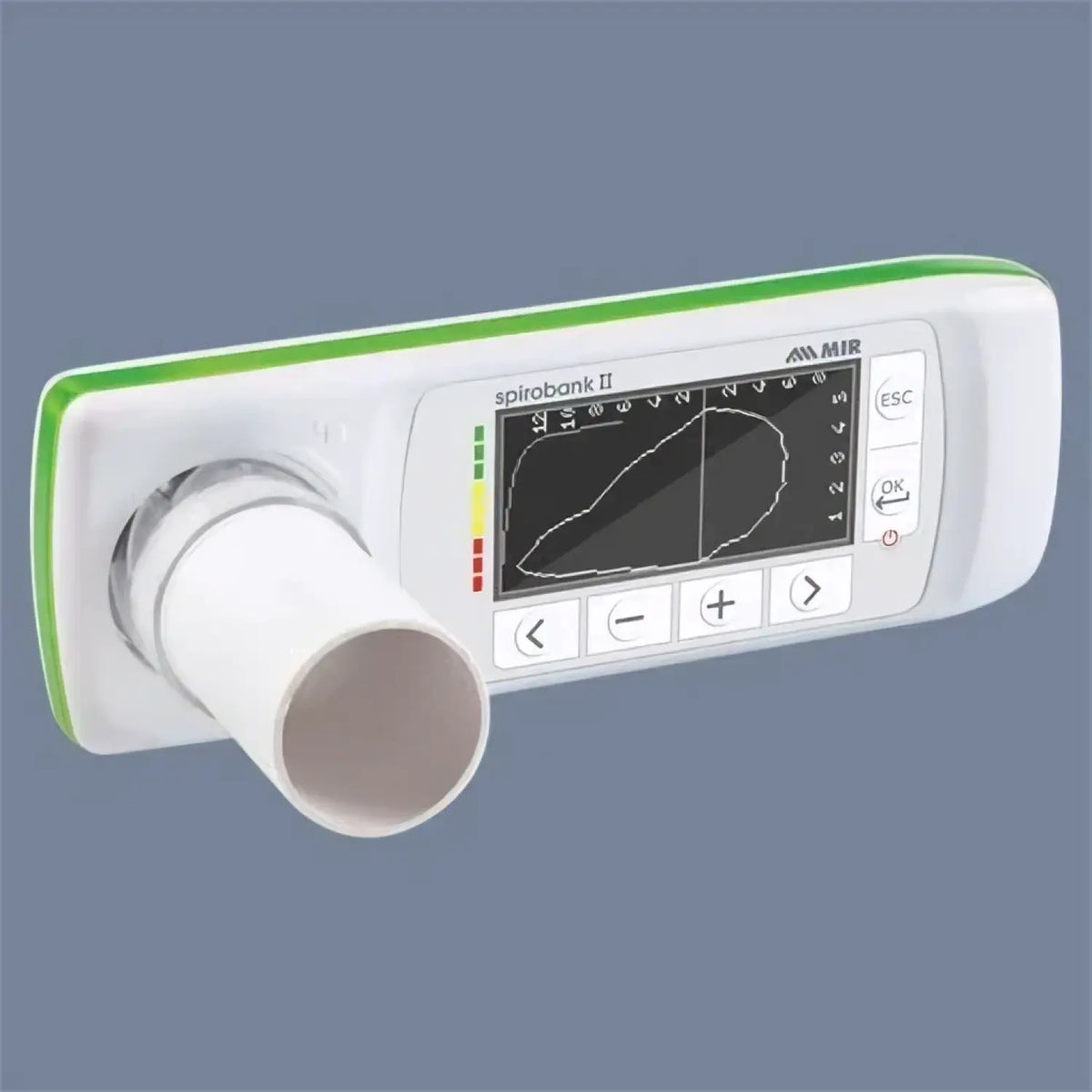

Spirobank II Basic New

The new Spirobank II MIR is a user-friendly, intuitive to use mobile spirometer with sufficient storage for recording up to 10,000 tests and enables an instant diagnosis thanks to the traffic light display. Thanks to the spirometric waveform in real time the results can be evaluated directly on the device.

New Spirobank II is available with a calibrated disposable turbine. Additional calibration is no longer required. The turbine itself is packaged and calibrated.

The spirobank II basic is not affected by:

  • Temperature
  • Humidity
  • Air pressure

    The Spirobank II meets all the conditions required for the purchase of a spirometer.

    • Product features:

    • Portable spirometer with high-resolution display
    • Quick and intuitive to use thanks to function keys with symbols
    • User-friendly
    • Backlighting makes the deployment during emergencies possible
    • Traffic light display
    • Analysis of spirometry directly on the display
    • Storage for up to 10,000 examinations
    • Integrated, powerful battery (40 hours)
    • USB connection for data transfer
    • Estimated lung age (ELA)
    • Motivational pictures for children
    • Available with either reusable or disposable turbines
    • WinspiroPRO software

    Technical specifications:

    • Measurement parameters: FVC, FEV1, FEV1%, PEF, FEF25-75%, FET, EVOL (extrapolated volume), ELA (estimated lung age), VC, IVC, IC, ERV
    • Backlit LCD display, resolution: 160 x 18
    • Rechargable 3.7V lithium battery
    • Temperature sensor: semiconductor (0-45°C)
    • Flow sensor: digital bi-directional turbine
    • Volume: 10 L
    • Dimensions: 16.0 x 5.5 x 2.5 cm

    If the spirometer with the PC software winspiroPRO is connected via the USB cable, the following tests and parameters can be measured:

    • FVC, FEV1 (one second value), FEV1 / FVC (Tiffeneau), FEV1 / FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age and extrapolated volume, FET, Time to PEF, FEV0.5, FEV0 .5 / FVC, FEV0.75, FEV0.75 / FVC, FEV2, FEV2 / FVC, FEV3, FEV3 / FVC, FEV6, FEV1 / FEV6, FIVC, FIV1, FIV1 / FIVC, PIF, FIF25, FIF50, FIF75, FEF50 / FIF50, VC, IVC, IC, ERV, IRV, f, VE, VT, tI, tE, VT / tI, tE / Ttot, MVV (measured), MVV (calculated)
    • Post-bronchodilator FVC
    • FVC provocation tests (after methacholine or histamine)
    • VC (slow vital capacity)
    • MVV (maximum voluntary ventilation)

    WinspiroPRO software

    • Compatible with Windows 7, Windows 8, Vista, XP and 10
    • User friendly
    • Innovative interface
    • Results and diagrams can be sent via e-mail
    • Curves and tests can be displayed in different formats, eg. Word, Excel, Adobe Acrobat, HTML
    • View and compare all curves and calculation of the measured delta values
    • Z-score (GLI 2012)

    The Spirobank II comes with a nose clip and carry pouch and reusable turbine

    Available options:

    The spirometer is to be used with a turbine. The reusable turbine (included) needs to be used with disposable or paper mouthpieces.

    Check out the MIR website and compare the different spirometers.





    Spirobank II Spirometer Basic MIR + turbine

    Spirobank II Basic Spirometer MIR + turbine
    Read more Read more

    Voor dit artikel hebt u mondstukken nodig. Aangeraden zijn bacteriefilters

    €1.249,17 excl. VAT €1.499,00 incl. VAT
    €1.249,17 excl. VAT €1.499,00 incl. VAT

    Art. no.

    1107077

    Availability

    Will be ordered for you
