Portable 12-lead ECG device for accurate diagnostics – featuring a high sampling rate of 32,000 Hz, intuitive operation and a compact design for flexible use in clinics, medical practices or during home visits.

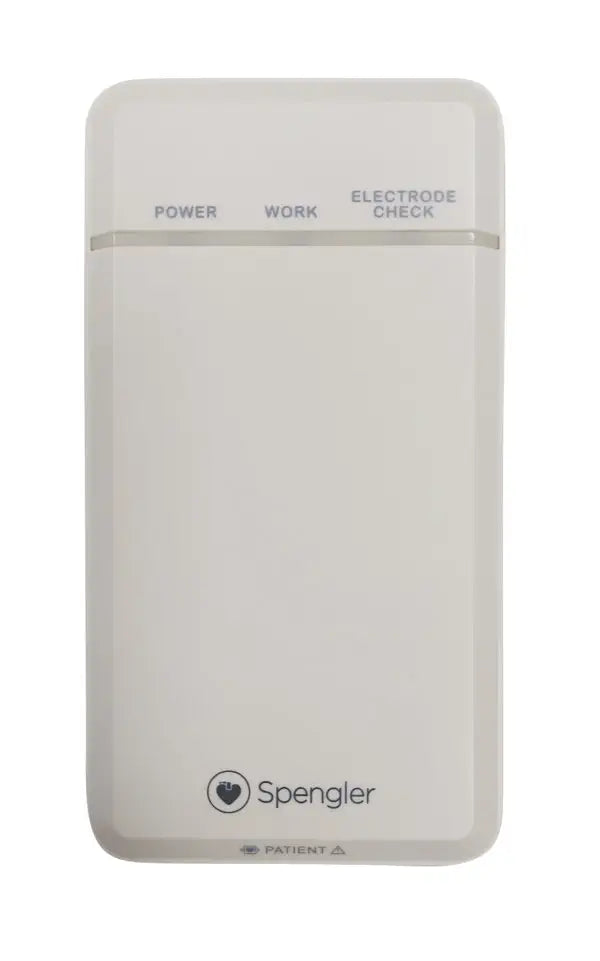

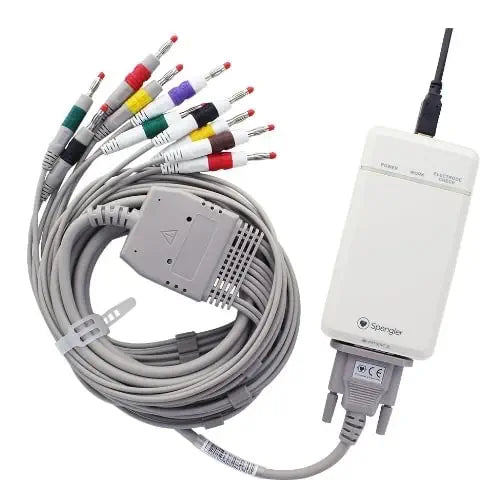

The Cardiomate PC-ECG by Spengler offers modern diagnostics in a compact format and is ideal for doctors who want to work accurately and efficiently. With a high sampling rate of 32,000 Hz, the device delivers detailed ECG signals in real time. The powerful software provides automatic interpretation and interval calculation.

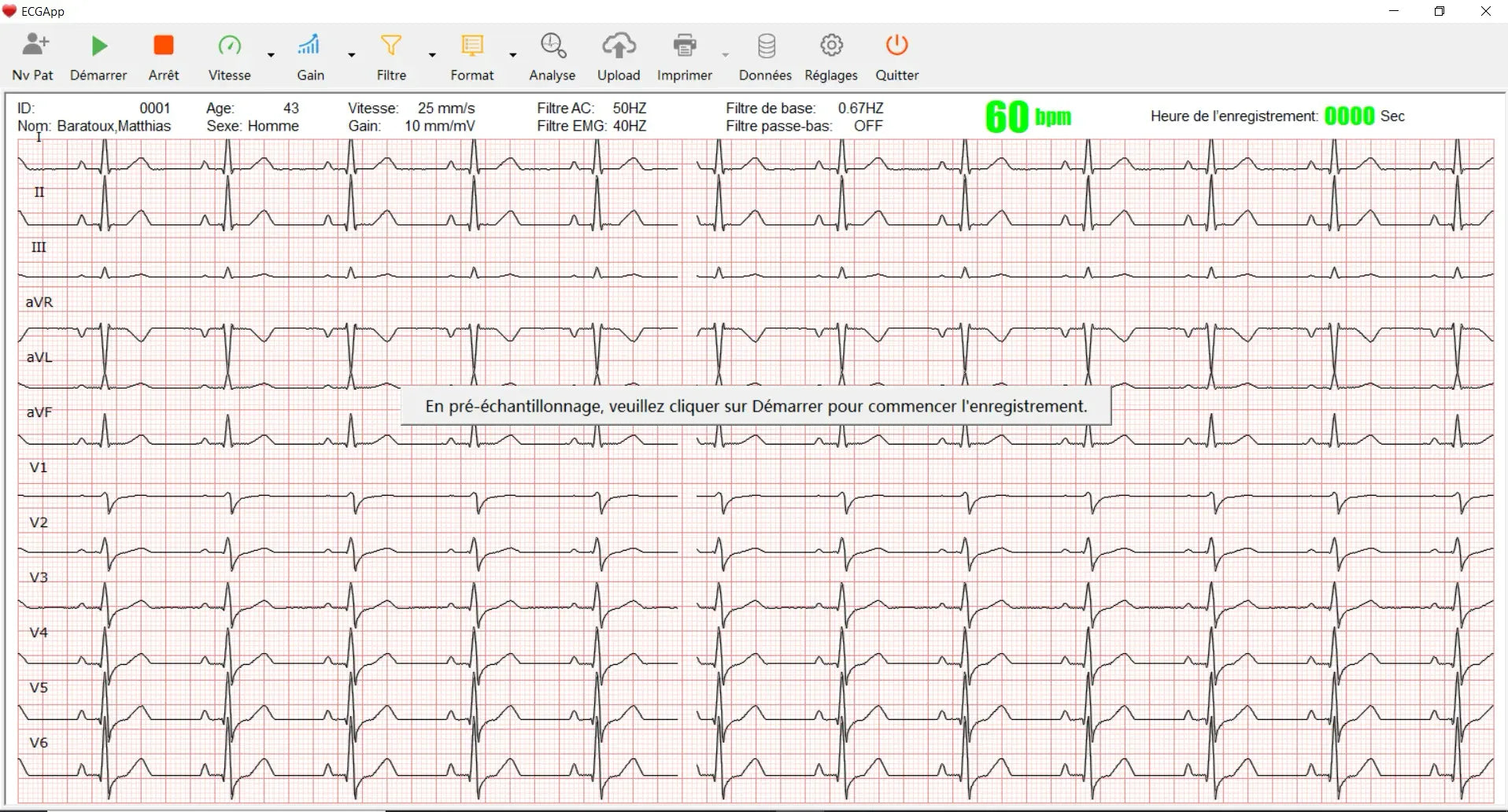

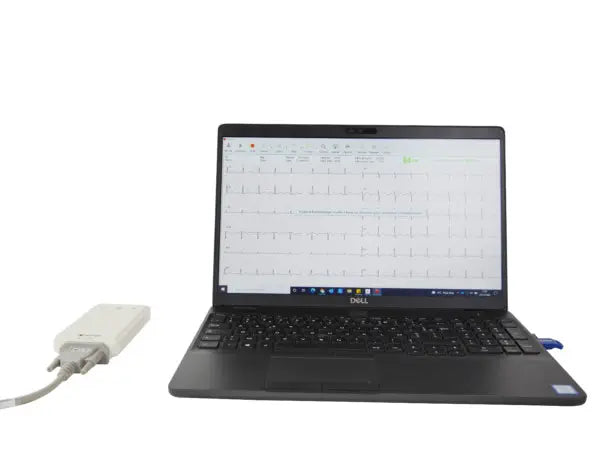

The device is connected to a PC via USB. All 12 leads can be displayed live on the PC.
Its compact design makes the Cardiomate PC-ECG easy to transport and particularly suitable for home visits and flexible use at different locations.
| Leads | 12 standard leads |
|---|---|
| Sampling rate | 32,000 Hz |
| Common-mode rejection | >110 dB (without AC filter), >120 dB (with AC filter) |
| Sensitivity | 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV, 10/5 mm/mV, 20/10 mm/mV, ACC |
Remote installation is optionally available. Our member of staff will assist you via a secure internet connection with the installation and configuration of the software on your computer.
Art. no.
1104167
Availability
Shipping
Ordered before 3:00 PM on weekdays and the entire order in stock: shipped the same day.
Free shipping from €100 excl. VAT and €121 incl. VAT (NL)
On weekdays before 3 PM and in stock, shipped same day
For both professionals and consumers
For Praktijk Plus customers, discounts up to 25%*
Your practice in NL can order on account
Portable 12-lead ECG device for accurate diagnostics – featuring a high sampling rate of 32,000 Hz, intuitive operation and a compact design for flexible use in clinics, medical practices or during home visits.
The Cardiomate PC-ECG by Spengler offers modern diagnostics in a compact format and is ideal for doctors who want to work accurately and efficiently. With a high sampling rate of 32,000 Hz, the device delivers detailed ECG signals in real time. The powerful software provides automatic interpretation and interval calculation.
The device is connected to a PC via USB. All 12 leads can be displayed live on the PC.
Its compact design makes the Cardiomate PC-ECG easy to transport and particularly suitable for home visits and flexible use at different locations.
| Leads | 12 standard leads |
|---|---|
| Sampling rate | 32,000 Hz |
| Common-mode rejection | >110 dB (without AC filter), >120 dB (with AC filter) |
| Sensitivity | 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV, 10/5 mm/mV, 20/10 mm/mV, ACC |
Remote installation is optionally available. Our member of staff will assist you via a secure internet connection with the installation and configuration of the software on your computer.
