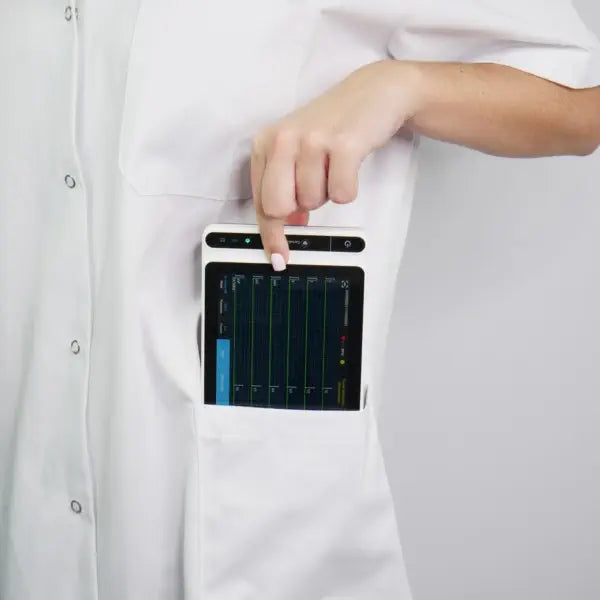

The Spengler Cardiomate EVI 7'' ECG is a compact and portable 12-channel ECG machine designed for the fast and accurate recording, assessment and digital processing of ECGs. Weighing just 800 grams and featuring compact dimensions, the Cardiomate EVI can easily be carried from room to room within a GP practice, clinic or healthcare facility. Its compact size also makes it easy to carry in a doctor's bag when performing ECGs during home visits.

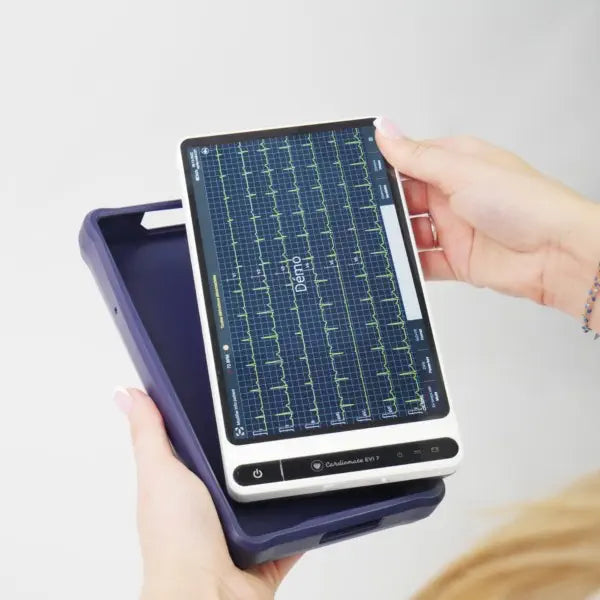

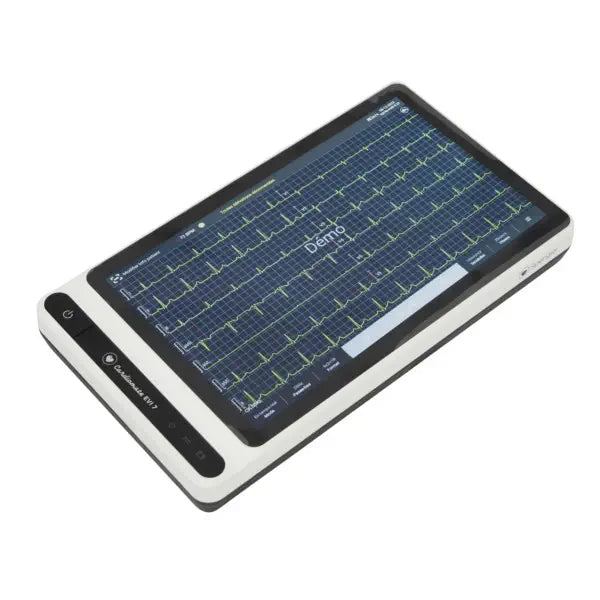

The Spengler Cardiomate EVI features a clear 7-inch touchscreen on which all 12 ECG channels can be displayed simultaneously. Its intuitive operation and clear display make the ECG machine suitable for everyday professional use.

12-channel ECG with a high sampling rate

The Cardiomate EVI records a complete 12-channel ECG with a high sampling rate of 32,000 Hz. The device features automatic pacemaker detection and marking, as well as automatic ECG interpretation using the Glasgow algorithm, including the calculation of relevant intervals.

All 12 leads can be displayed simultaneously on the touchscreen, together with the automatic interpretation and interval calculations. This provides the user with an immediate and clear overview of the recorded ECG data.

Export ECGs via USB and Wi-Fi

Recorded ECGs can easily be stored and exported. Using the supplied USB flash drive, ECG reports can be transferred to a computer for further assessment, storage or processing.

In addition, the Spengler Cardiomate EVI features Wi-Fi connectivity. ECG reports can be sent as PDF files directly from the device to a configured email address. ECGs can also be printed via Wi-Fi using a compatible Wi-Fi printer.

ECG data can be exported via Wi-Fi or the USB port as a PDF or XML file.

Key features of the Spengler Cardiomate EVI

• Professional 12-channel ECG machine.
• Equipped with a clear 7-inch touchscreen.
• Compact dimensions: 197 x 112.4 x 26.1 mm.
• Low weight of just 0.8 kg.
• Suitable for use in GP practices, clinics, healthcare facilities and during home visits.
• Built-in rechargeable battery.
• Charging via mains power.
• Print ECGs via Wi-Fi using a compatible Wi-Fi printer.
• Export ECG reports to the supplied USB flash drive.
• Send ECG reports directly from the device by email as PDF files.
• High sampling rate of 32,000 Hz.
• Automatic pacemaker detection and marking.
• Automatic ECG interpretation using the Glasgow algorithm.
• Automatic calculation of ECG intervals.
• Simultaneous display of all 12 ECG channels.
• Entry of patient data via the touchscreen.
• Data export via Wi-Fi or USB as a PDF or XML file.
• English and French user manuals included.

The Spengler Cardiomate EVI 7'' ECG combines mobility, accurate ECG recording and modern digital capabilities in one compact device. Thanks to its USB and Wi-Fi connectivity, automatic ECG interpretation and low weight, this ECG machine is a practical solution for healthcare professionals who need to record 12-channel ECGs quickly and efficiently in different locations.
