This Mindray BeneHeart R3 ECG is a top-quality 12-channel ECG monitor. The BeneHeart R3 is characterized by its compact size and lightweight (only 1.2 kg). The 5" color display has a resolution of no less than 800x480 and therefore provides a clear display of the ECG. The BeneHeart R3 is equipped with a built-in printer so that you can easily print out the ECG.

• Lightweight ECG: 1.2 kg
• 12-channel resting ECG
• Equipped with built-in printer
• Works on a battery

The Mindray BeneHeart R3 is a 12-channel ECG device for the extraction of resting ECGs that allows simple, comfortable operation thanks to its shortcut keys. Due to its compact design and low weight, the Mindray R3 is ideal for mobile use. The ECG recordings can be easily transferred to a practice computer via a USB stick. When printing the ECG, the BeneHeart serves as a support, so that the doctor can make notes on the ECG printout and sign it immediately after registration.

• 12-channel resting ECG
• With analysis and interpretation (based on the University of Glasgow algorithm)
• 5" TFT LCD color screen (resolution: 800 x 480)
• Modes: auto, interval, manual
• With integrated thermal printer
• Internal memory for up to 800 ECGs
• With integrated lithium-ion battery (battery charge is sufficient for 6 hours of continuous operation or approx. 500 ECG recordings)
• Works on battery and mains
• Shortcut keys for easy operation
• Data transfer possible via USB stick (PDF format)
• Defibrillation protection
• Dimensions: 56 x 260 x 194 mm
• Weight: approx. 1.2 kg (incl. battery)
• Use with folded paper or roll paper

Delivery

• BeneHeart R3 ECG
• ECG cable clip
• Battery
• ECG paper
• Power cable

Optional

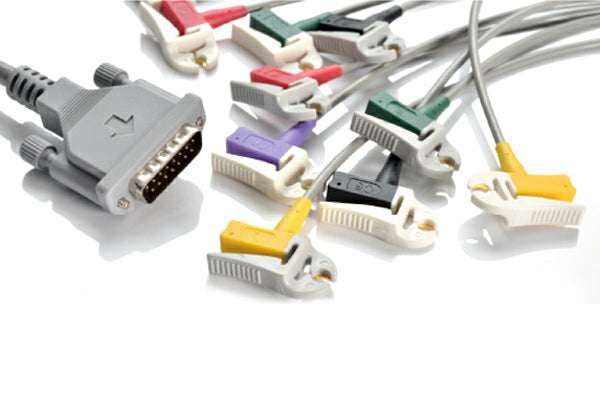

• ECG cable with banana plugs
• Trolley with cable arm and storage compartment
