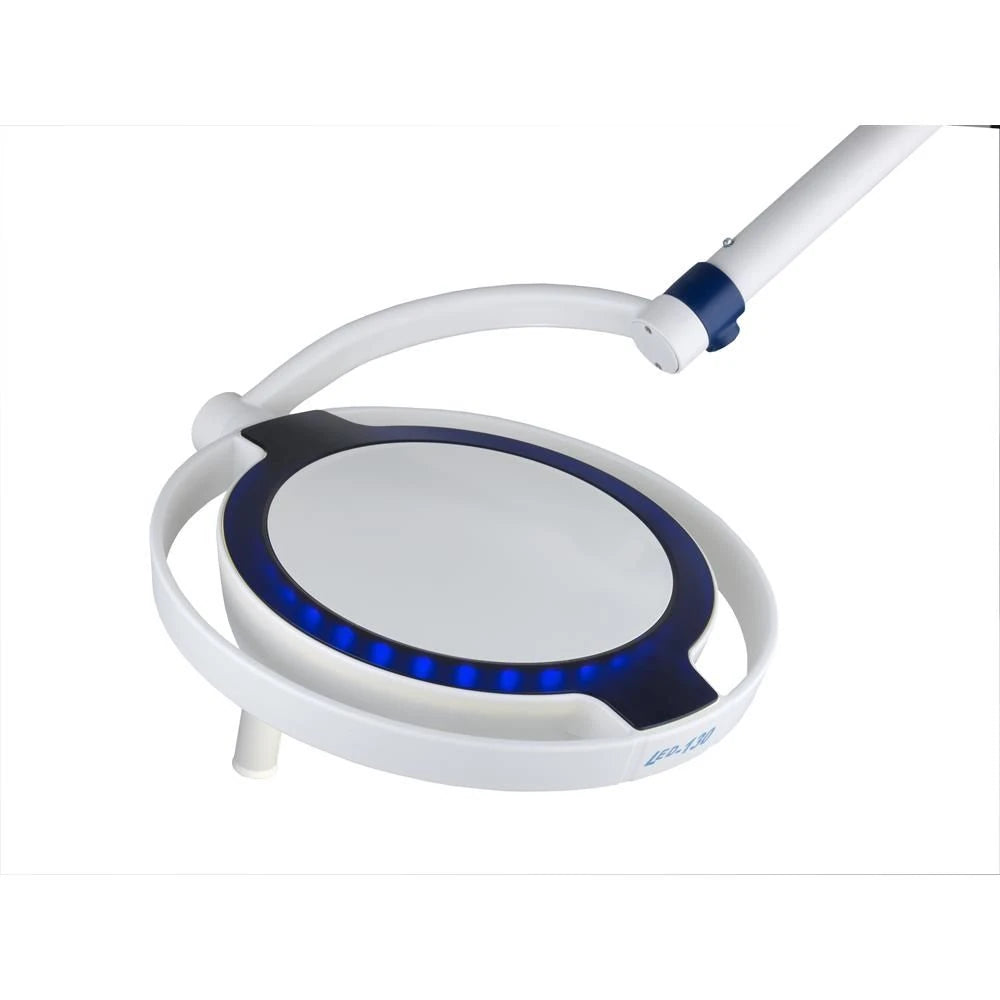

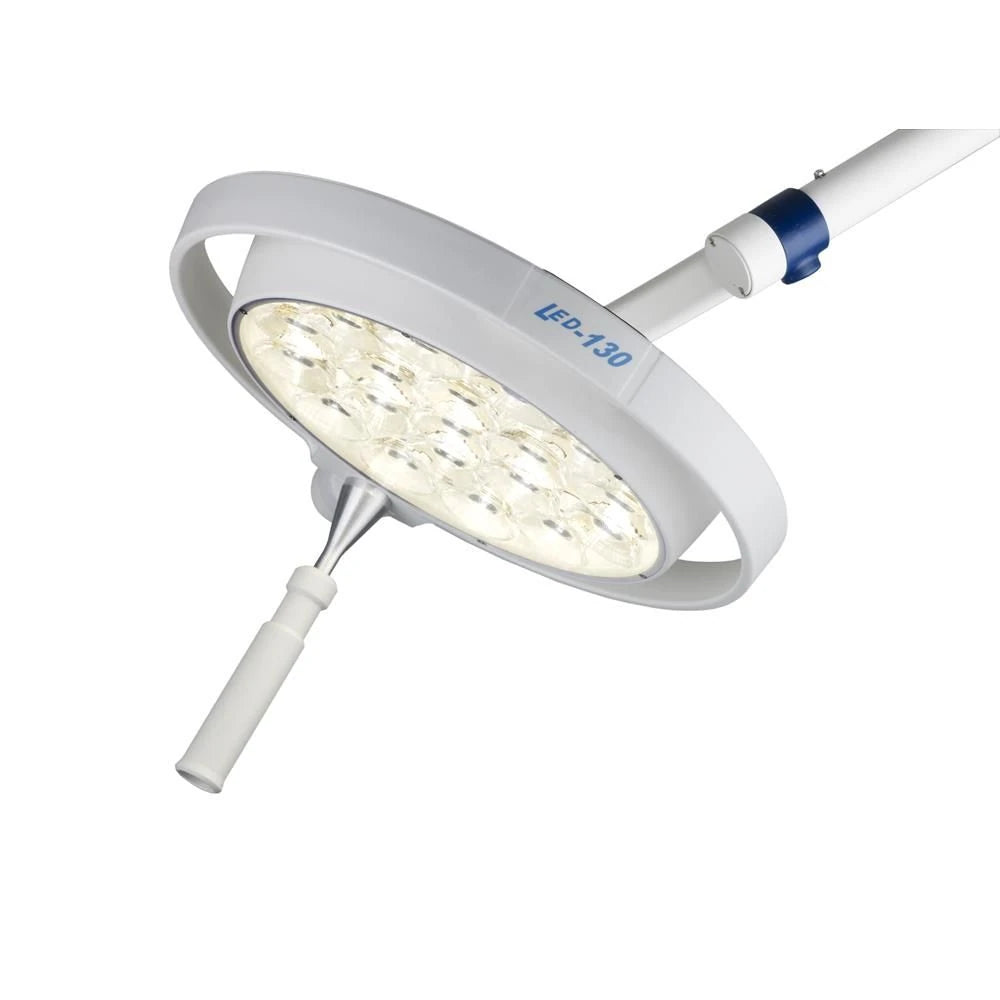

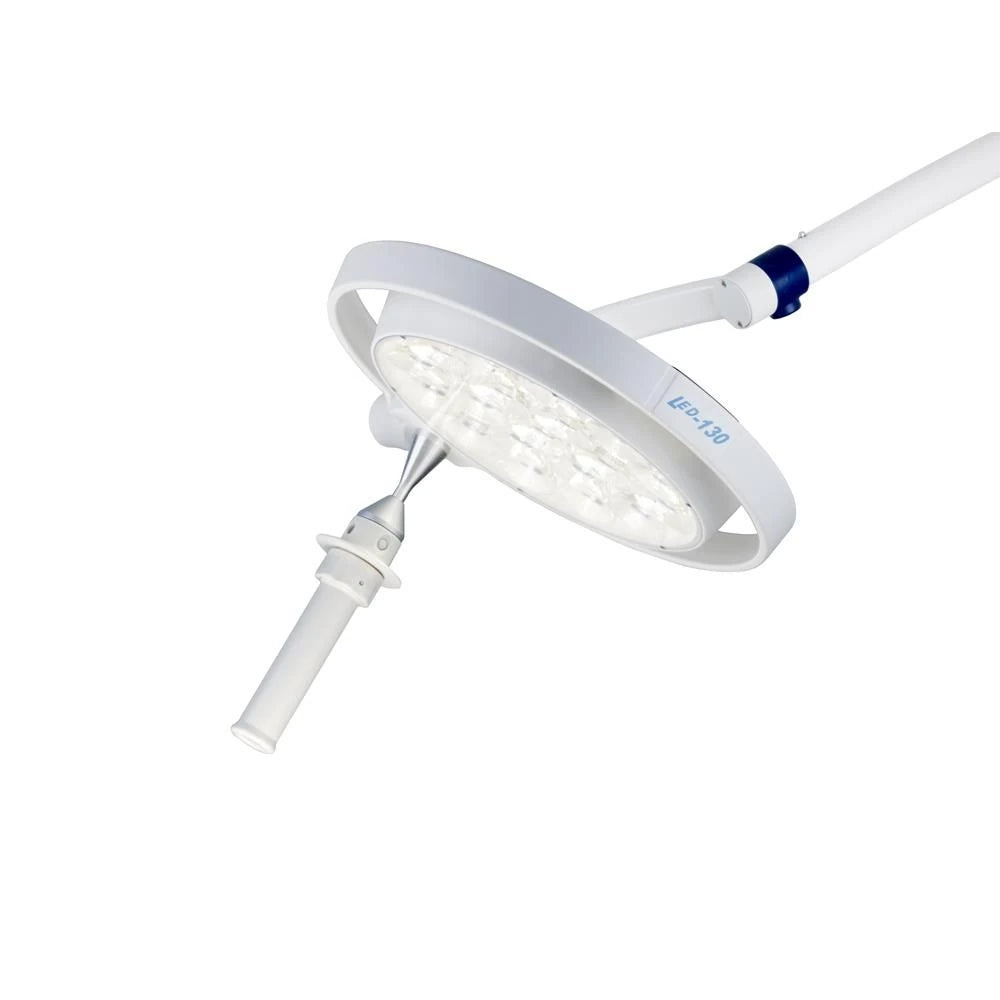

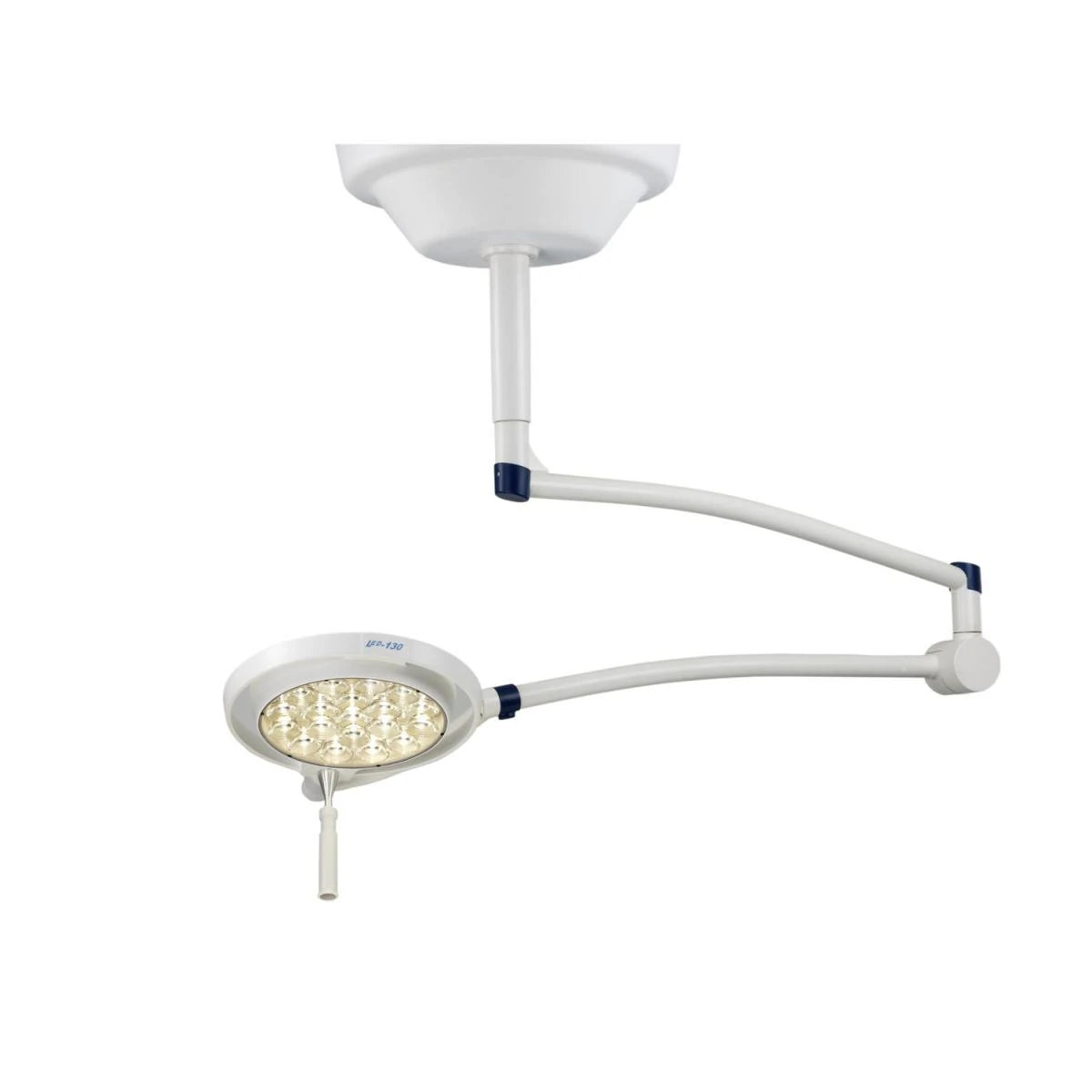

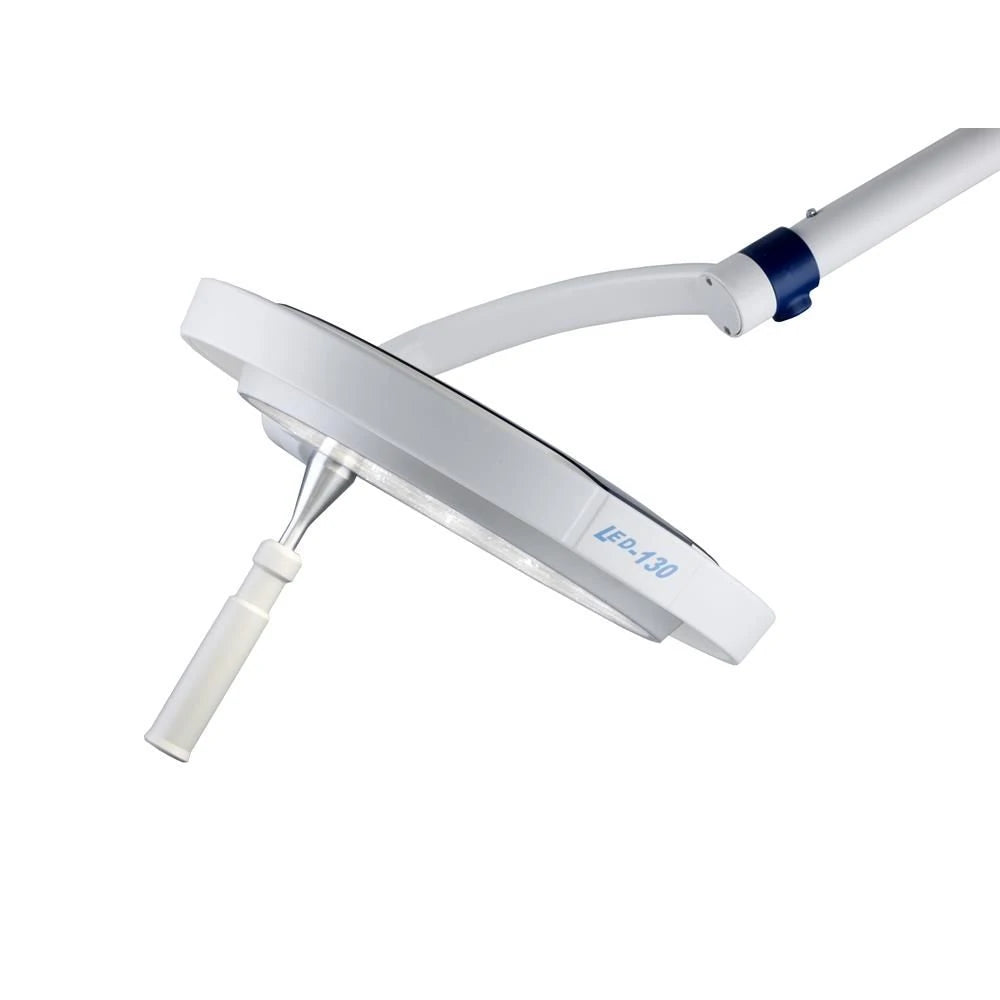

The Dr. Mach 130 Swing is a practical examination lamp with LED lighting. Provides very bright white light thanks to the powerful 19-part LED lamp. Thanks to the internal sliding contacts, the rotation possibilities are unlimited. Breaking wires in the arm are therefore almost a thing of the past. The lamp head has a light dimmer. In addition, the lamp uses much less energy than traditional halogen lamps. Thanks to the cool LED technology, it is much more effective than conventional light sources such as halogen lamps. Heat radiation is also minimized. The light can be positioned precisely.



Specifications

• Equipped with 19 white LED lamps
• Ceiling model
• Light intensity 60,000 lux
• Light field size 14cm
• Lamp head diameter 33 cm
• Colour temperature 4,500K
• Dimmable 50-100%
• Working distance 70 to 140 cm
• Unlimited rotation possibilities
• Long lifespan of 60,000 hours
• Colour temperature Ra=97
• Maximum reach approx. 140cm.
• Voltage 100-240V - 50/60 Hz.



Requirements



• For ceiling mounting, an adjustment ring TK270 is required
• For fixed ceiling height up to 3 meters. Above that you need an extra mounting tube:
  9050310350 for 3.00 to 3.50 m
  9050310400 for 3.50 to 3.90 m




Installation costs



We charge an all-in rate for installation costs, including call-out charges, up to a ceiling height of 3.50 meters. Installation only in the Netherlands. A storage rate applies to the Wadden Islands. The mounting surface must be free for installation, electrical (earth) cables are present. In the case of climate ceilings, someone must be present during installation who can provide the necessary cut-out/feed-through for our ceiling axis.
Unforeseen matters such as waiting times are declared on the basis of a subsequent calculation.
We will contact you for all details.

Make your choice on the right.

Datasheet Dr. Mach 130 (pdf)

Brochure Dr. Mach (pdf)
