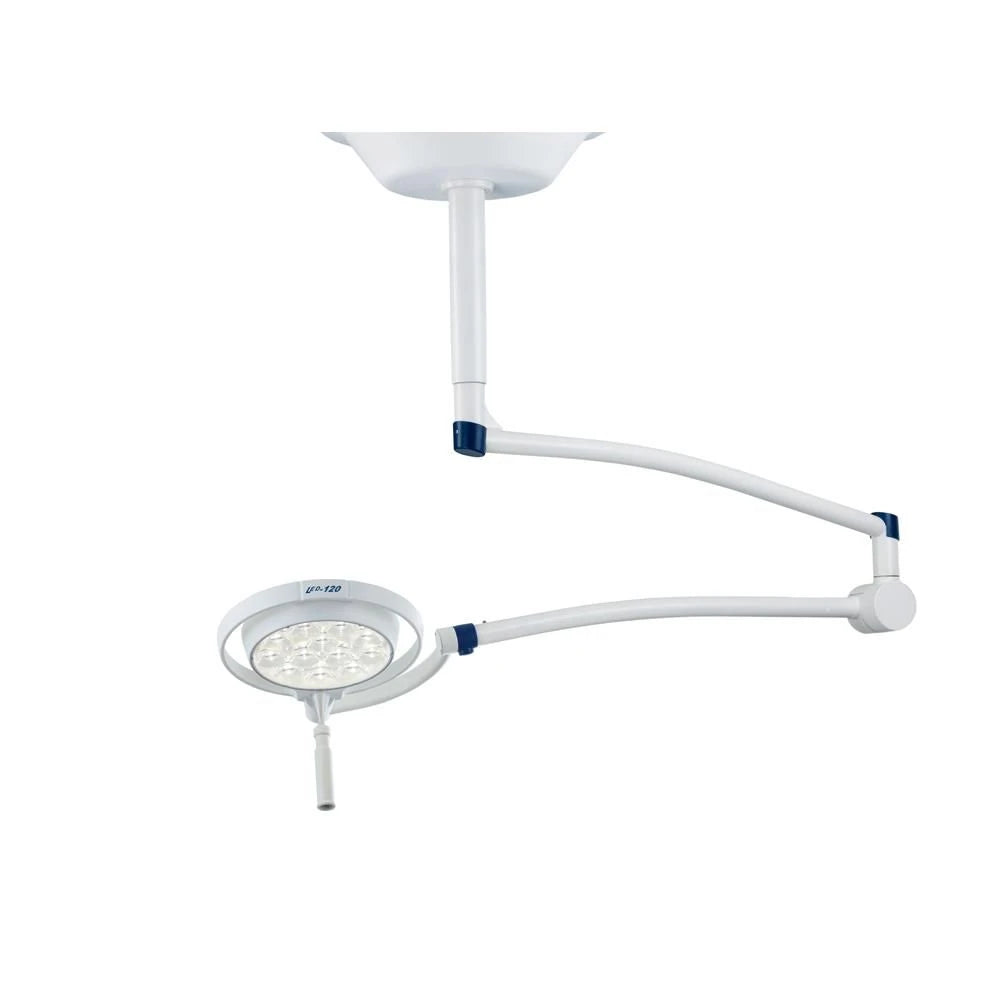

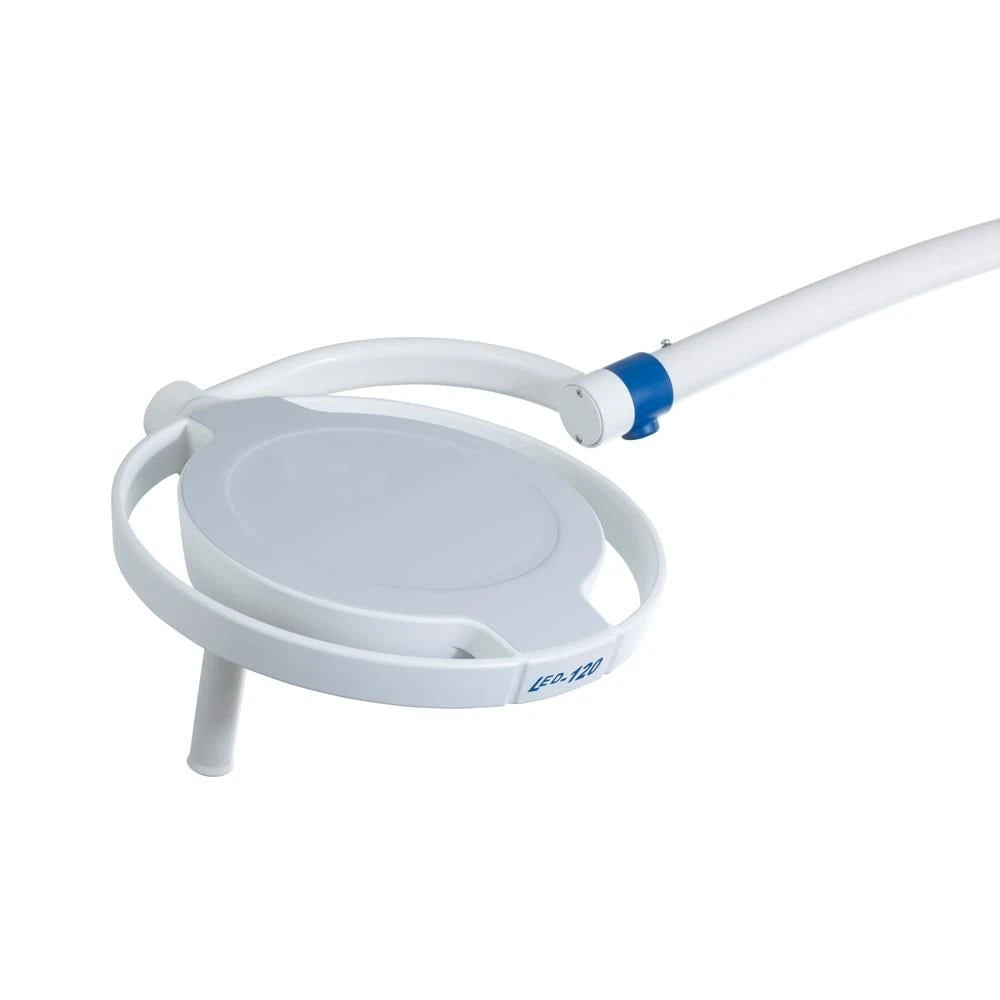

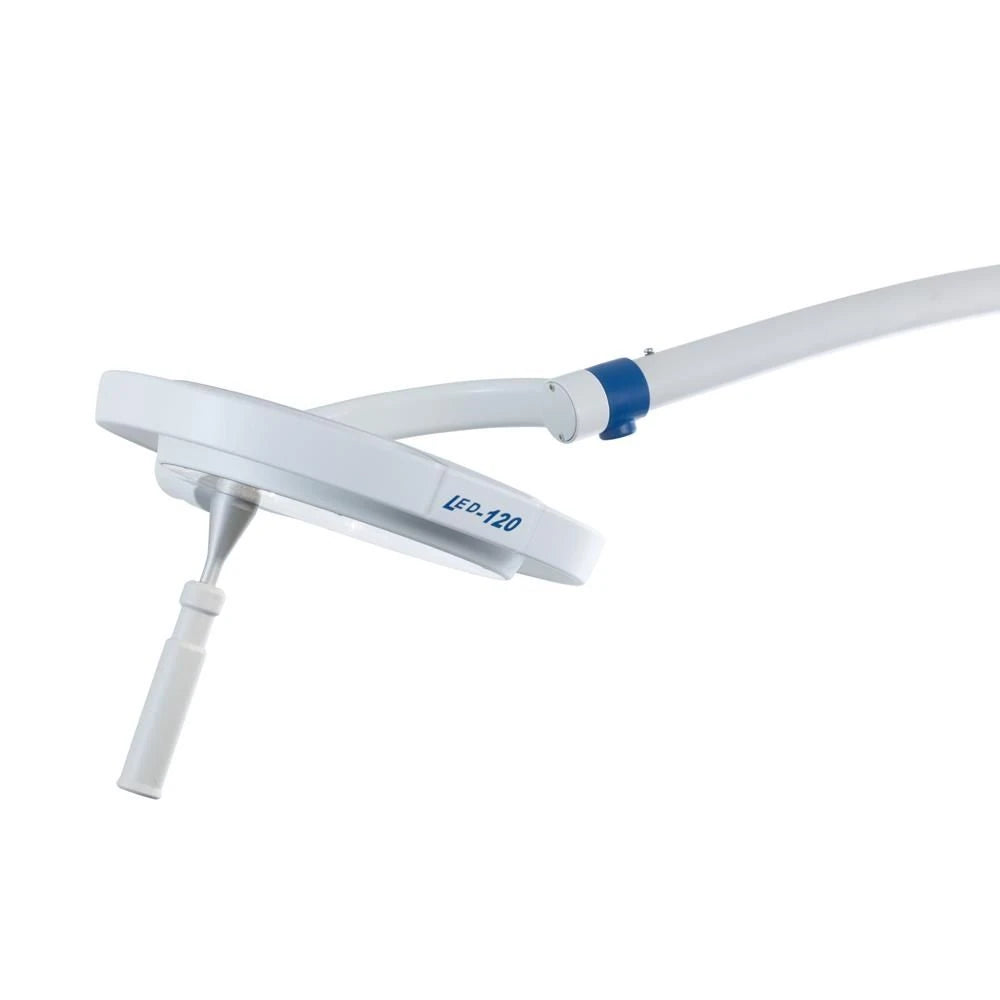

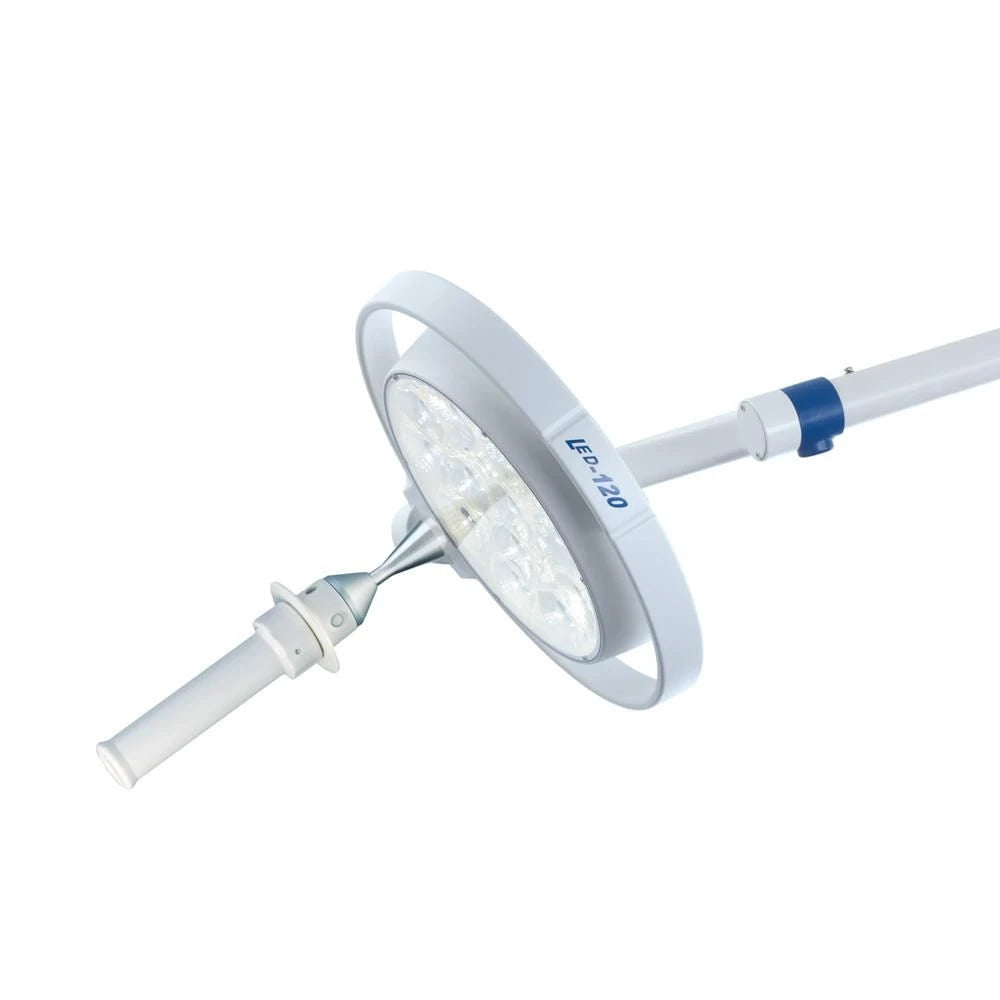

The Dr. Mach 120 LED Swing is a practical examination lamp with LED lighting. The lamp is equipped with a swing arm. Provides very bright white light thanks to the powerful 12-part LED lamp. The diameter of the lamp head is 29 cm.

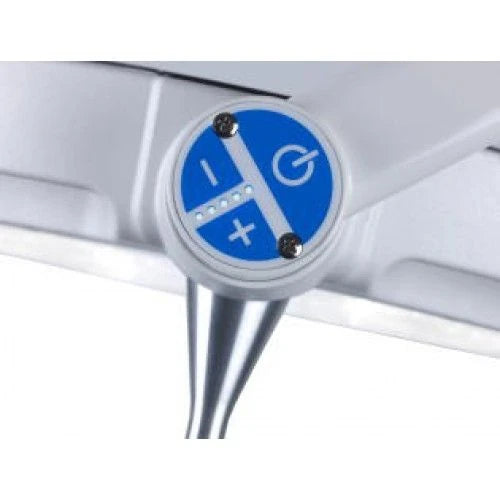

Thanks to the internal sliding contacts, the rotation possibilities are unlimited. Breaking wires in the arm are therefore almost a thing of the past. The lamp head has a light dimmer. In addition, the lamp consumes much less energy than traditional halogen lamps. Thanks to the cool LED technology, it is much more effective than conventional light sources such as halogen lamps.
The heat radiation is also minimized. The light can be positioned precisely.



Specifications

• Equipped with 12 white LED lamps
• Light intensity 40,000 lux
• Dimmable 50-100%, dimming settings 5
• Light field diameter 13-18 cm
• Lamp head diameter 29 cm
• Working distance 70 to 140 cm
• Unlimited rotation possibilities
• Long lifespan of 60,000 hours
• Colour temperature Ra=96, 4500 Kelvin
• Maximum range approx. 140cm.
• Voltage 110V -240V - 50 Hz.



Requirements



• For mounting to the ceiling, an adjustment ring TK270 is required
• For fixed ceiling heights up to 3 metres. Above that, you will need an additional mounting tube:
  9050310350 for 3.00 to 3.50 m
  9050310400 for 3.50 to 3.90 m




Installation costs



We charge an all-in rate for installation costs, including call-out charges, up to a ceiling height of 3.50 metres. Installation only in the Netherlands. A storage fee applies to the Wadden Islands. The mounting surface must be free for mounting, electrical (earth) cables are present. If there are climate ceilings, someone must be present during mounting who can provide the necessary recess/feed-through for our ceiling axis.
Unforeseen matters such as waiting times are declared on the basis of a post-calculation.
We will contact you for all details.

Make your choice on the right.

Datasheet Dr. Mach 120 (pdf)

Dr. Mach brochure (pdf)
