Product features:

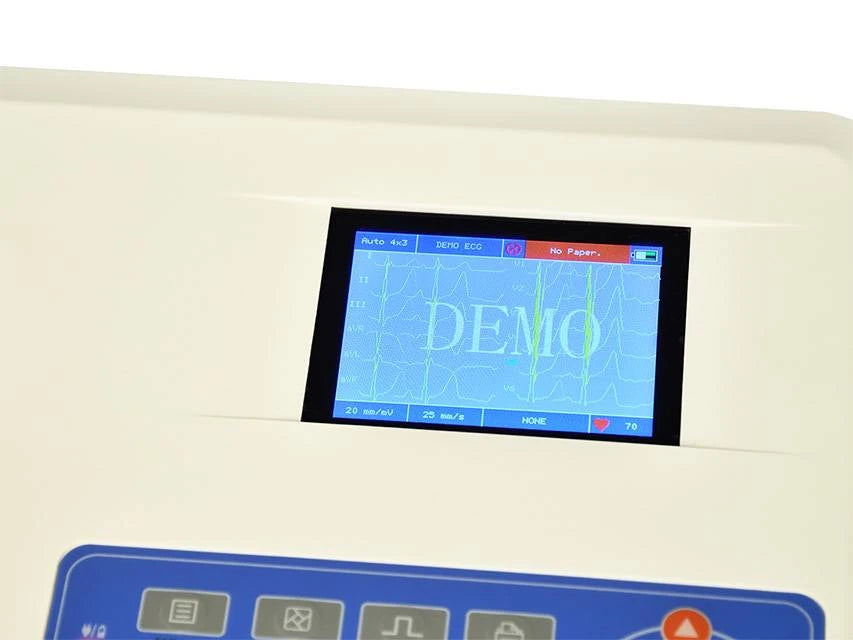

• 3.5 "TFT color LCD
• 12 leads, simultaneous display
• Thermal printing system
• AC and DC power supply
• High capacity built-in rechargable lithium battery
• Battery supports up to 150 continuous ECG records
• Built-in database
• Built-in memory can store more than 1000 ECGs
• Digital signal processor for the filter
• Auto-measurement, auto-analysis, auto-interpretations
• ECG Sync software, USB connection to PC
• Internal software: GB, FR, IT, ES, DE, TR, PL, PL, RU, KZ
• PC software: GB
• USB connector allows real-time transmission to PC, remote data analysis and diagnosis, management and printing via a PC.

Technical specifications:

• Safety: Class I
• Standard 12 leads
• Patient leakage current:<10uA
• Sampling rate: 1000Hz
• A/D conversion: 12bit
• Frequency 0.05Hz ~ 150 Hz (-3 dB ± 0.4 dB)
• Time constant:> 3.2s
• CMRR:> 60dB,> 100dB (Add Filter)
• Enduring polarization: ± 500mV
• Noise level:<15μVp-p
• EMG interference filter: 25Hz / 35Hz (-3dB)
• AC filter 50Hz / 60Hz (= 20dB)
• Recording mode: Thermal Printing System (32 dots / mm)
• Recording paper: 80mm x 20m
• Sensitivity: 2.5, 5, 10, 20, 40 mm / mV
• Paper speed:25 mm / s, 50 mm / s
• Manual recording: 5, 6:25, 10, 12.5, 25, 50 mm / mV
• AC: 110-220V, 50/60 Hz
• DC: 7.4V, 3700 mAh rechargable lithium polymer battery
• Fuse: 2* F5 × 20mm AC delay; T250mA / 250V (Power supply: 220V)
• Size: 315 x 215 x 77 mm
• Weight 2:52 kg
