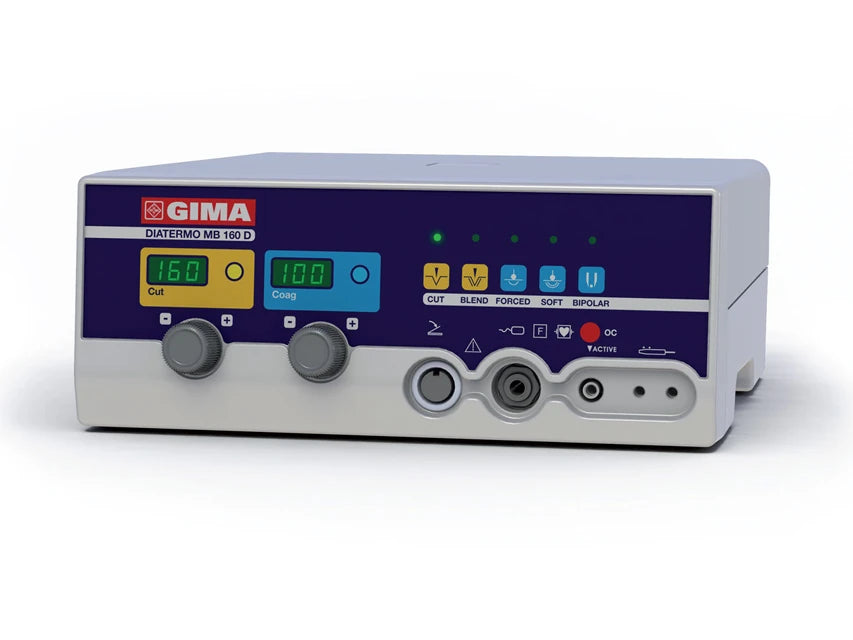

MB 160D is a high frequency electrosurgical unit suitable for small and medium surgery.
MB is suitable for cutting (CUT), cut coagulation (BLEND), superficial coagulation (FORCED COAG), deep coagulation in absence of necrosis (SOFT COAG) and with forceps, bipolar coagulation.
The clear digital display and microcontroller make it easy to monitor all operational functions, and this provides additional reliability.
The connection of neutral electrodes are constantly monitored, safety monitoring of patient/plate contact using split neutral electrodes.
Possible to control the amount of power at the handle so that the procedure can be completed without losing concentration.
Applications:
Features:
Minimally invasive surgery.
Ability to use a bipolar forceps.
Ability to use split neutral electrodes.
Remembers the last used settings.
Activation by pedal and / or handle.
Digital adjustment and indication of the output power.
Adaptation of the acoustic indicator intensity.
Technical specifications:
Max output power CUT: 160W-250 O
Max output power BLEND: 120 W-200 O
Maximum output power FORCED COAG: 100 W-150 O
Maximum output power SOFT COAG: 80 W-100 O
Max output power BIPOLAR: 60W-100 O
Frequency: 600 KHz
Patient circuit: F
Selectable input voltage: 115-230 Vac
Mains frequency: 50-60 Hz
Electrical input: 350 VA
Weight: 5 kg
Control: Patient / Plate circuit control, output control, self-check control
Safety: EN60601-1, EN60601-1-2, EN60601-2-2
Electrical class: I CF MDD 93/42 / EC Class: IIb
Standard accessories:
Handle with two buttons single use.
MB waterproof foot switch (to be used as an alternative to the handle)
MB flat neutral plate and cable
Kit 10 short autoclavable electrodes, Ø 2,4 mm
Power cable 2 m - Schuko plug
User Manual: GB, ES, IT, FR, PL
The difference with the Diatermo 160 is that the outside is made of metal and not plastic.
MDRArt. no.
1303037
Availability
Shipping
Ordered before 3:00 PM on weekdays and the entire order in stock: shipped the same day.
Free shipping from €100 excl. VAT and €121 incl. VAT (NL)
On weekdays before 3 PM and in stock, shipped same day
For both professionals and consumers
For Praktijk Plus customers, discounts up to 25%*
Your practice in NL can order on account
