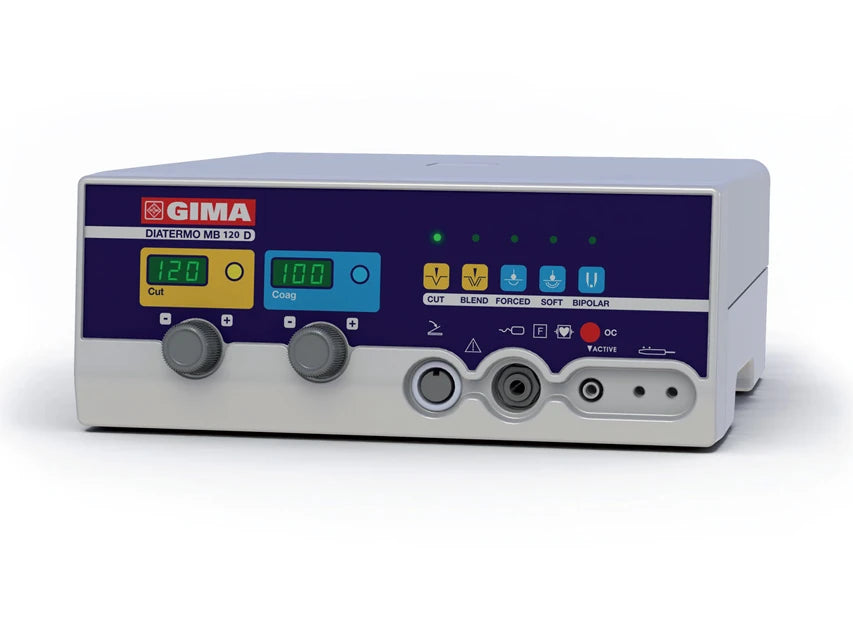

MB 120D is a high frequency electrosurgical unit suitable for small and medium surgery.
MB is suitable for cutting (CUT), cut coagulation (BLEND), superficial coagulation (FORCED COAG), deep coagulation in absence of necrosis (SOFT COAG) and with forceps, bipolar coagulation.
The clear digital display and microcontroller make it easy to monitor all operational functions, this provides additional reliability.
The connection of neutral electrodes are constantly monitored, safety monitoring of patient / plate contact using split neutral electrodes.
Possible to control the amount of power in the handle so that the procedure can be completed without losing concentration.
Applications:
Features:
Minimally invasive surgery.
Ability the use bipolar forceps.
Ability to use split neutral electrodes.
Remembers the last used settings.
Activation by pedal and / or handle.
Digital adjustment and indication of the output power.
Adaptation of the acoustic indicator intensity.
Technical specifications:
Max output power CUT: 120W-250 O
Max output power BLEND 90 W 200 R
Maximum output power FORCED COAG: 80 W-150 O
Maximum output power SOFT COAG: 60 W-100 O
BIPOLAR Max output: 40 W-100 O
Frequency: 600 KHz
Patient circuit: F
Selectable input voltage: 115-230 Vac
Mains frequency: 50-60 Hz
Electrical input: 300 VA
Weight: 5 kg
Control: Patient / Plate circuit control, output control, self-check control
Safety: EN60601-1, EN60601-1-2, EN60601-2-2
Electrical class: I CF; MDD 93/42 / EC Class: IIb
Standard accessories:
Handle with two buttons single use.
MB foot switch (to be used as an alternative to the grip)
MB flat neutral plate and cable
Kit of 6 short autoclavable electrodes, Ø 2,4 mm
Power cable 2 m - Schuko plug
User Manual: English, Italian, available on request: French, Spanish
MDRArt. no.
1303036
Availability
Shipping
Ordered before 3:00 PM on weekdays and the entire order in stock: shipped the same day.
Free shipping from €100 excl. VAT and €121 incl. VAT (NL)
On weekdays before 3 PM and in stock, shipped same day
For both professionals and consumers
For Praktijk Plus customers, discounts up to 25%*
Your practice in NL can order on account
