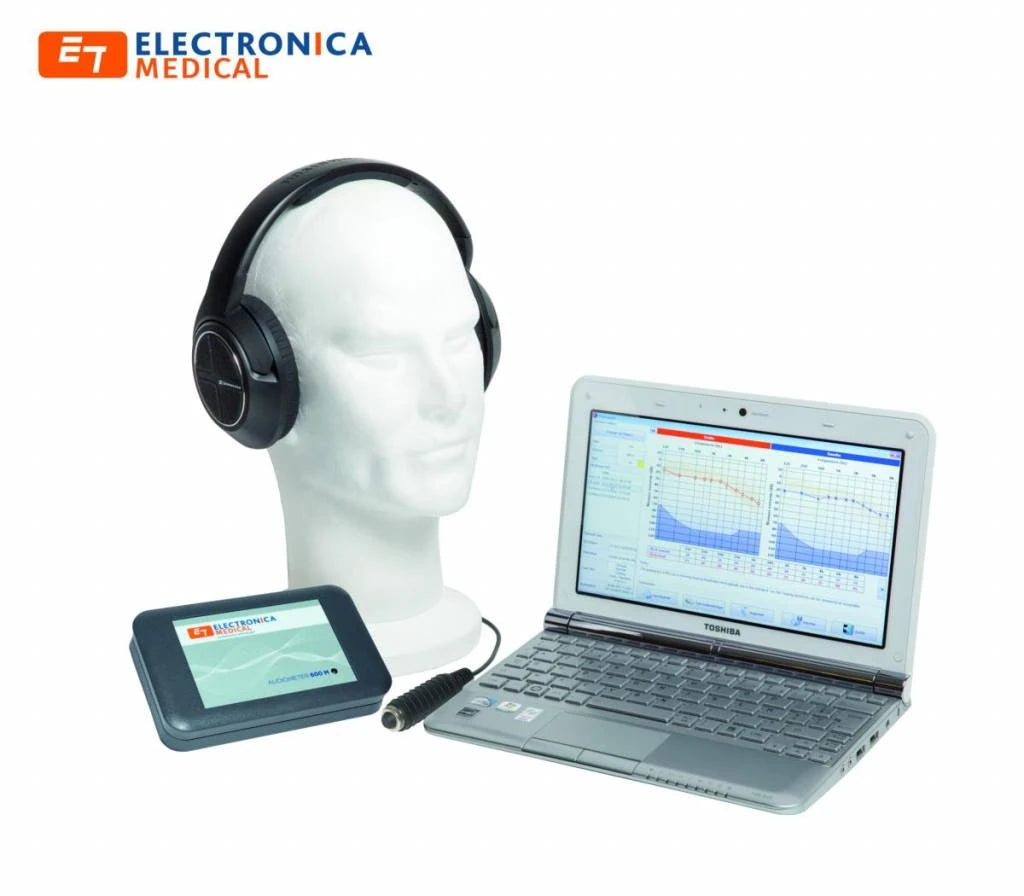

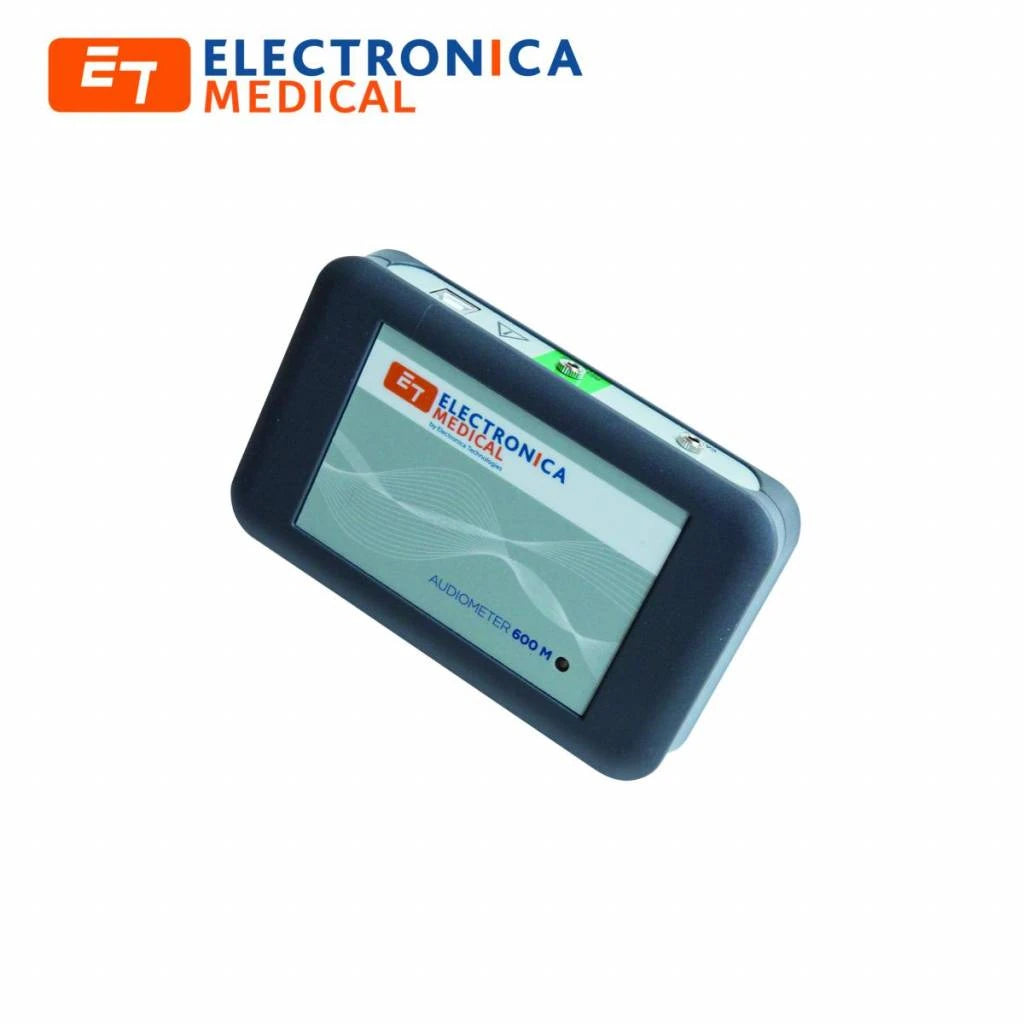

The Audiometer 600 M is a compact, computer-controlled audiometer designed for performing and recording hearing tests. The audiometer connects to a PC or laptop via USB and is suitable for professional use in GP practices, occupational health services and other medical facilities.

The supplied software enables audiometric examinations to be performed, stored, managed and printed easily. Patient data and test results can be clearly recorded and managed in digital patient records.

Thanks to its compact dimensions and the supplied carrying case, the Audiometer 600 M is also suitable for healthcare professionals who perform audiometric examinations at different locations.

Benefits of the Audiometer 600 M:

• Easy connection to a PC or laptop via USB.
• Power supply and data transfer via the USB connection.
• Compact and lightweight design.
• Suitable for performing air conduction audiometry.
• Frequency range from 125 to 8000 Hz.
• Adjustable output level from -10 to 100 dB HL.
• Choice of continuous or pulsed test tones.
• Manual and automatically programmable test modes.
• Automatic hearing threshold determination using the Hughson-Westlake method.
• Software for managing and storing patient data and audiograms.
• Option to save, print and export examination results.
• Supplied in a practical, shock-resistant carrying case.

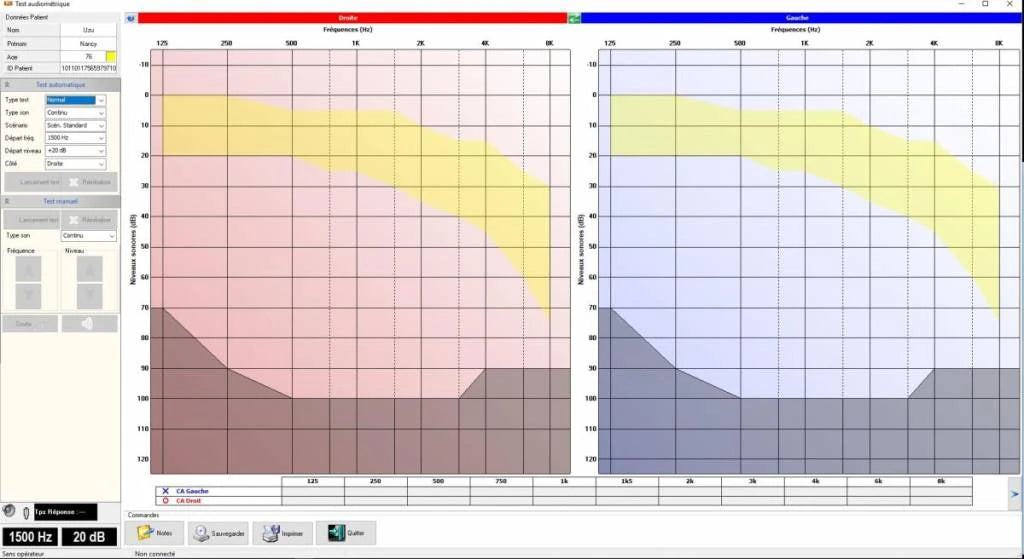

User-friendly audiometry software

The supplied software supports healthcare professionals in performing and recording audiometric examinations. The user interface is clear and designed to provide an efficient workflow.

The software offers, among other features:

• An interactive and intuitive user interface.
• Manual and automatically programmable examination modes.
• Configuration and optimisation of audiometric test procedures.
• Operation using a keyboard and mouse.
• Creation and management of digital patient records.
• Storage of audiograms and examination results.
• Printing and exporting of test results.
• Calculation of hearing loss.
• Automatic hearing threshold determination using the Hughson-Westlake method.

Compact USB audiometer for professional use

The Audiometer 600 M connects directly to a desktop computer or laptop via USB. No separate mains power supply is required, allowing the audiometer to be used easily at different workstations.

The compact housing measures just 92 × 150 × 28 mm and weighs approximately 160 grams. Together with the supplied carrying case, the system is easy to transport for audiometric examinations at different locations.

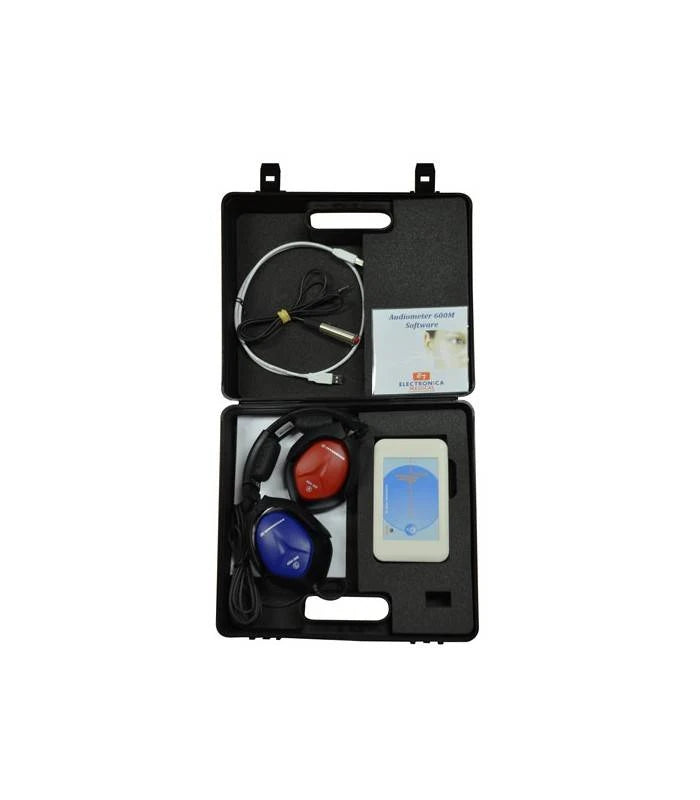

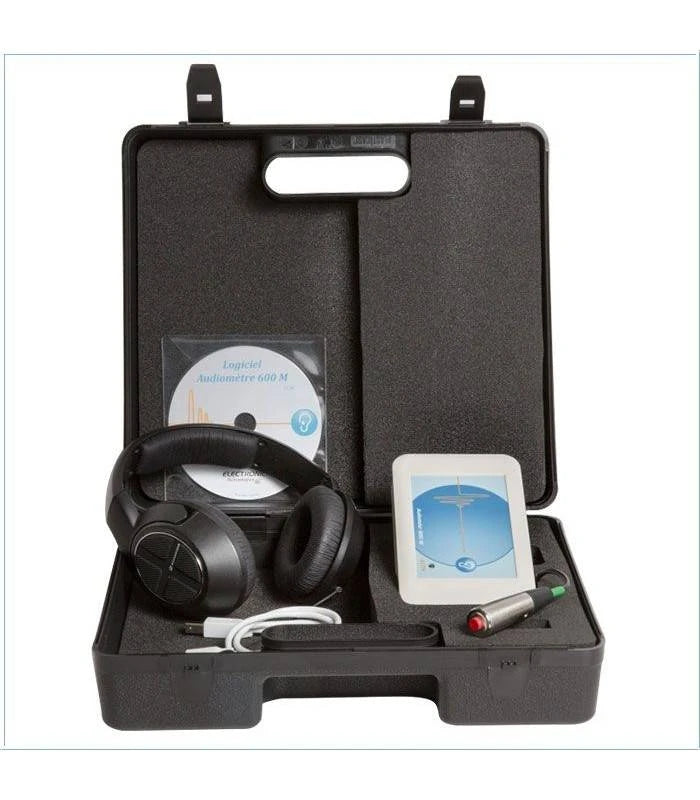

Supplied with:

• Audiometer 600 M.

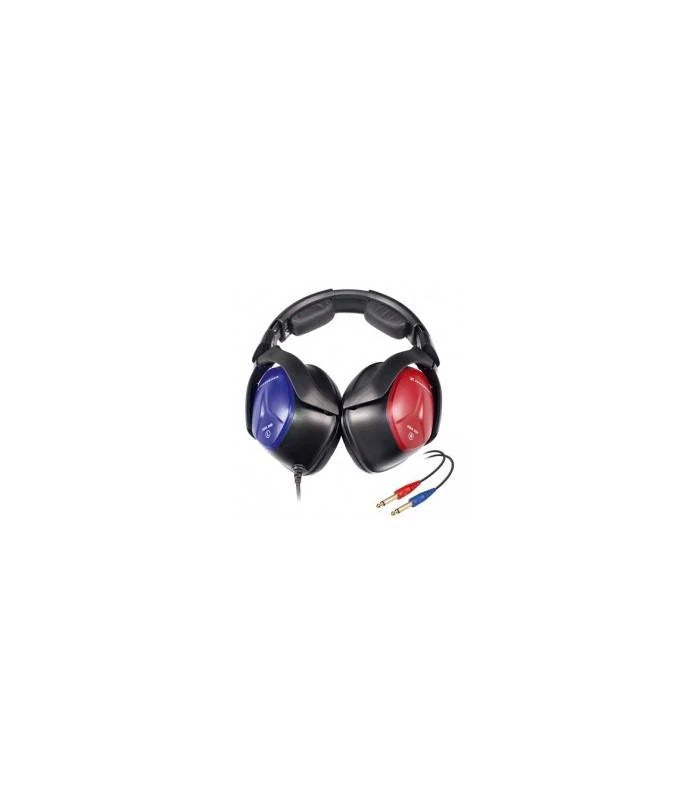

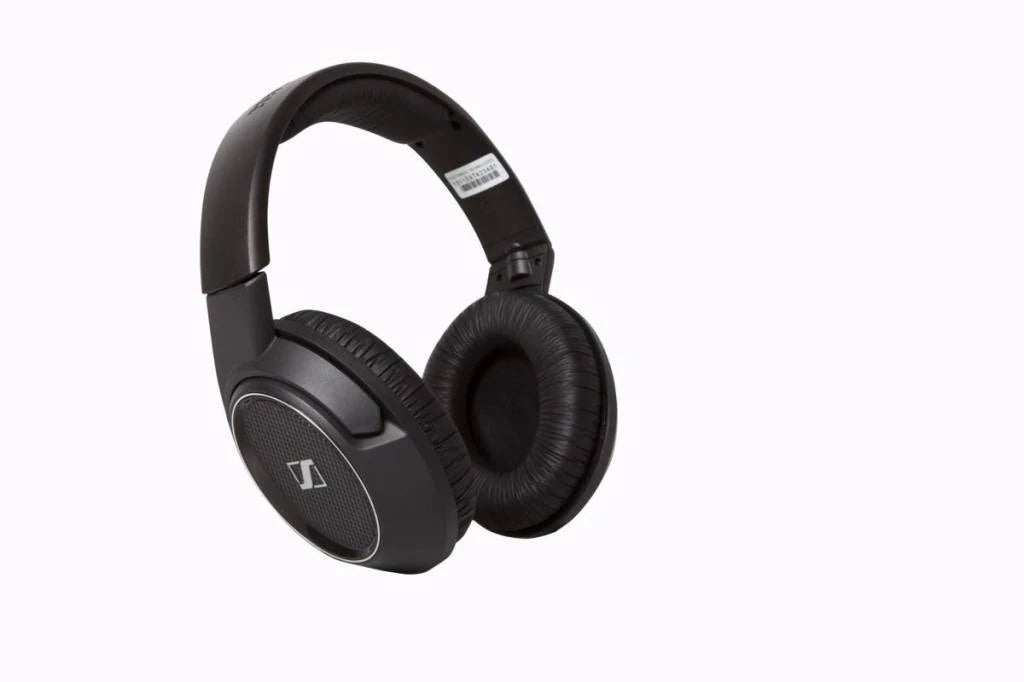

• Adjustable audiometric headphones.
• 1-metre USB cable.
• Patient response switch.
• USB flash drive containing the software.
• User manual.
• Lightweight, shock-resistant carrying case.

Technical specifications:

• Audiometer type: Type 4 according to EN 60645-1.
• Test method: air conduction audiometry.
• Frequencies: 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000 and 8000 Hz.
• Frequency accuracy: ± 2%.
• Output level: -10 to 100 dB HL.
• Test tone: continuous or pulsed.
• Power supply and communication: via USB.
• Minimum required RAM: 1 GB.
• Minimum processor speed: 1 GHz.
• Required free hard drive space: 50 MB.
• Minimum screen resolution: 1024 × 600 pixels.
• Supported operating systems: Windows XP, Vista, 7, 8, 10 and 11.
• Housing material: ABS.
• Audiometer dimensions: 92 × 150 × 28 mm.
• Audiometer weight: approximately 160 g.
• Carrying case dimensions: 280 × 310 × 100 mm.
• Total set weight: approximately 1.3 kg.

Looking to buy an audiometer?

The Audiometer 600 M is a compact solution for healthcare professionals who want to perform and record audiometric examinations digitally. Thanks to the USB connection, supplied software and carrying case, the system is suitable for both use at a fixed workstation and audiometric examinations at different locations.
