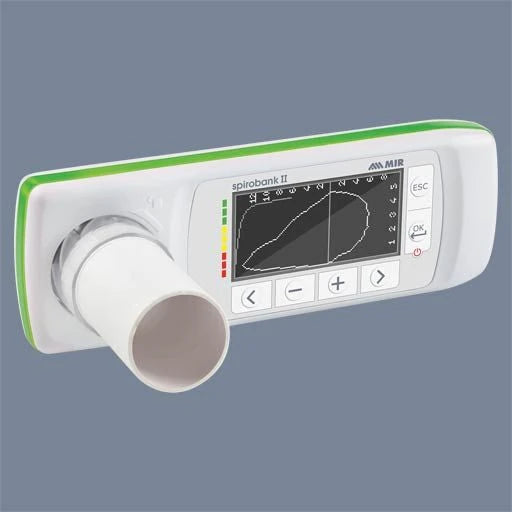

Spirobank II Basic New The new Spirobank II MIR is a user-friendly, intuitive to use mobile spirometer with sufficient storage for recording up to 10,000 tests and enables an instant diagnosis thanks to the traffic light display. Thanks to the spirometric waveform in real time the results can be evaluated directly on the device. New Spirobank II is available with a calibrated disposable turbine. Additional calibration is no longer required. The turbine itself is packaged and calibrated. The spirobank II basic is not affected by:
  • Temperature
  • Humidity
  • Air pressure

    The Spirobank II meets all the conditions required for the purchase of a spirometer.

    • Product features:

    • Portable spirometer with high-resolution display
    • Quick and intuitive to use thanks to function keys with symbols
    • User-friendly
    • Backlighting makes the deployment during emergencies possible
    • Traffic light display
    • Analysis of spirometry directly on the display
    • Storage for up to 10,000 examinations
    • Integrated, powerful battery (40 hours)
    • USB connection for data transfer
    • Estimated lung age (ELA)
    • Motivational pictures for children
    • Available with either reusable or disposable turbines
    • WinspiroPRO software, license 1 year
    • Reusable turbine

    Technical specifications:

    • Measurement parameters: FVC, FEV1, FEV1%, PEF, FEF25-75%, FET, EVOL (extrapolated volume), ELA (estimated lung age), VC, IVC, IC, ERV
    • Backlit LCD display, resolution: 160 x 18
    • Rechargable 3.7V lithium battery
    • Temperature sensor: semiconductor (0-45°C)
    • Flow sensor: digital bi-directional turbine
    • Volume: 10 L
    • Dimensions: 16.0 x 5.5 x 2.5 cm

    If the spirometer with the PC software winspiroPRO is connected via the USB cable, the following tests and parameters can be measured:

    • FVC, FEV1 (one second value), FEV1 / FVC (Tiffeneau), FEV1 / FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age and extrapolated volume, FET, Time to PEF, FEV0.5, FEV0 .5 / FVC, FEV0.75, FEV0.75 / FVC, FEV2, FEV2 / FVC, FEV3, FEV3 / FVC, FEV6, FEV1 / FEV6, FIVC, FIV1, FIV1 / FIVC, PIF, FIF25, FIF50, FIF75, FEF50 / FIF50, VC, IVC, IC, ERV, IRV, f, VE, VT, tI, tE, VT / tI, tE / Ttot, MVV (measured), MVV (calculated)
    • Post-bronchodilator FVC
    • FVC provocation tests (after methacholine or histamine)
    • VC (slow vital capacity)
    • MVV (maximum voluntary ventilation)

    WinspiroPRO software

    • Compatible with Windows, MAC
    • User friendly
    • Innovative interface
    • Results and diagrams can be sent via e-mail
    • Curves and tests can be displayed in different formats, eg. Word, Excel, Adobe Acrobat, HTML
    • View and compare all curves and calculation of the measured delta values
    • Z-score (GLI 2012)

    The Spirobank II comes with a nose clip and carry pouch

    Available options:
    MIR Spiro software subscription for 1 year included. Afterwards you take out 1- or 2-year subscriptions.





    Spirobank II Basic Spirometer MIR + turbine

    Spirobank II Basic Spirometer MIR + turbine
    Lees verder Lees verder

    Voor dit artikel hebt u mondstukken nodig. Aangeraden zijn bacteriefilters

    €1.238,84 excl. BTW €1.499,00 incl. BTW
    €1.238,84 excl. BTW €1.499,00 incl. BTW

    Art. nr.

    1107077

    Beschikbaarheid

    Wordt voor u besteld

    Toegevoegd aan winkelwagen!

    Bezorging en service

    Gratis verzending vanaf €100 excl. btw en €121 incl. btw (NL)

    Werkdagen voor 15 uur en op voorraad, directe verzending

    Zowel voor de professional als consument

    Voor Praktijk Plus klanten kortingen tot 25%*

    Uw praktijk kan in NL op rekening bestellen

    Spirobank II Basic New The new Spirobank II MIR is a user-friendly, intuitive to use mobile spirometer with sufficient storage for recording up to 10,000 tests and enables an instant diagnosis thanks to the traffic light display. Thanks to the spirometric waveform in real time the results can be evaluated directly on the device. New Spirobank II is available with a calibrated disposable turbine. Additional calibration is no longer required. The turbine itself is packaged and calibrated. The spirobank II basic is not affected by:
  • Temperature
  • Humidity
  • Air pressure

    The Spirobank II meets all the conditions required for the purchase of a spirometer.

    • Product features:

    • Portable spirometer with high-resolution display
    • Quick and intuitive to use thanks to function keys with symbols
    • User-friendly
    • Backlighting makes the deployment during emergencies possible
    • Traffic light display
    • Analysis of spirometry directly on the display
    • Storage for up to 10,000 examinations
    • Integrated, powerful battery (40 hours)
    • USB connection for data transfer
    • Estimated lung age (ELA)
    • Motivational pictures for children
    • Available with either reusable or disposable turbines
    • WinspiroPRO software, license 1 year
    • Reusable turbine

    Technical specifications:

    • Measurement parameters: FVC, FEV1, FEV1%, PEF, FEF25-75%, FET, EVOL (extrapolated volume), ELA (estimated lung age), VC, IVC, IC, ERV
    • Backlit LCD display, resolution: 160 x 18
    • Rechargable 3.7V lithium battery
    • Temperature sensor: semiconductor (0-45°C)
    • Flow sensor: digital bi-directional turbine
    • Volume: 10 L
    • Dimensions: 16.0 x 5.5 x 2.5 cm

    If the spirometer with the PC software winspiroPRO is connected via the USB cable, the following tests and parameters can be measured:

    • FVC, FEV1 (one second value), FEV1 / FVC (Tiffeneau), FEV1 / FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age and extrapolated volume, FET, Time to PEF, FEV0.5, FEV0 .5 / FVC, FEV0.75, FEV0.75 / FVC, FEV2, FEV2 / FVC, FEV3, FEV3 / FVC, FEV6, FEV1 / FEV6, FIVC, FIV1, FIV1 / FIVC, PIF, FIF25, FIF50, FIF75, FEF50 / FIF50, VC, IVC, IC, ERV, IRV, f, VE, VT, tI, tE, VT / tI, tE / Ttot, MVV (measured), MVV (calculated)
    • Post-bronchodilator FVC
    • FVC provocation tests (after methacholine or histamine)
    • VC (slow vital capacity)
    • MVV (maximum voluntary ventilation)

    WinspiroPRO software

    • Compatible with Windows, MAC
    • User friendly
    • Innovative interface
    • Results and diagrams can be sent via e-mail
    • Curves and tests can be displayed in different formats, eg. Word, Excel, Adobe Acrobat, HTML
    • View and compare all curves and calculation of the measured delta values
    • Z-score (GLI 2012)

    The Spirobank II comes with a nose clip and carry pouch

    Available options:
    MIR Spiro software subscription for 1 year included. Afterwards you take out 1- or 2-year subscriptions.
