NEO ECG T180 - TABLET ECG with printer
LOG IN WITH YOUR PRACTICE PLUS DISCOUNT TO SEE YOUR DISCOUNT ON THIS PRODUCT

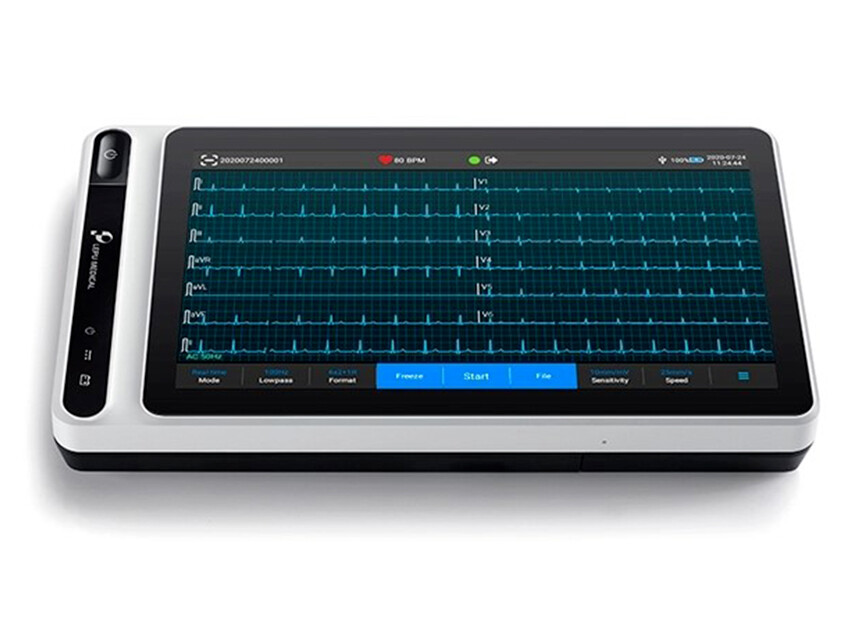

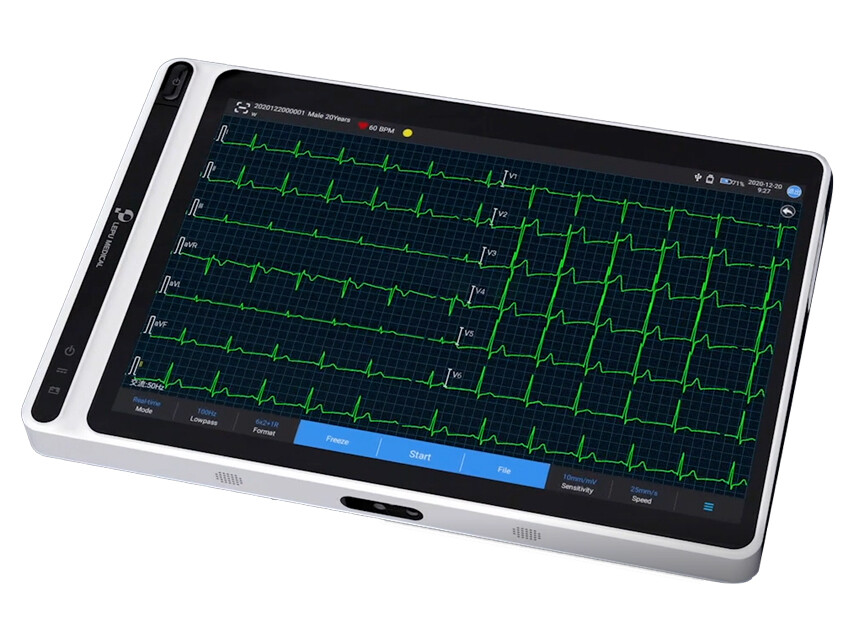

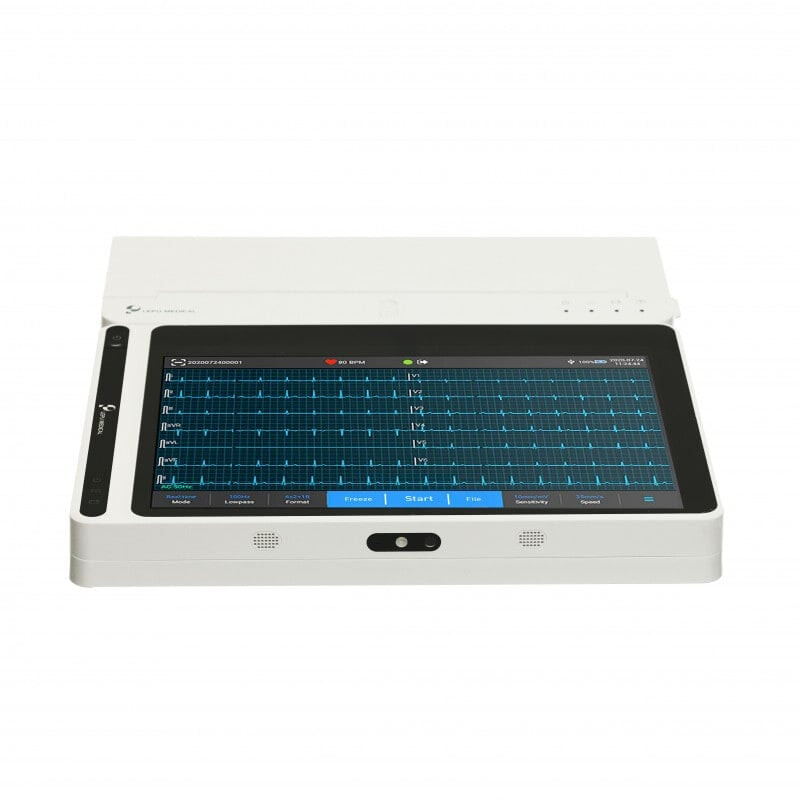

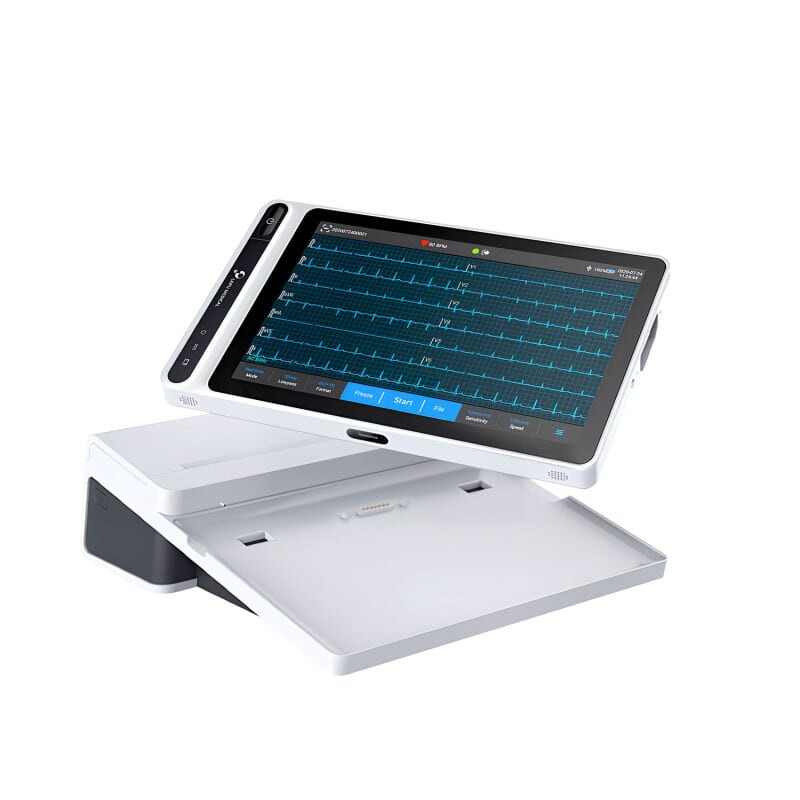

Lightweight and portable ECG tablets for recording and displaying 9/12 lead waveform, as well as heart rate detection. 10.1-inch high-resolution color touch screen, easy to operate.

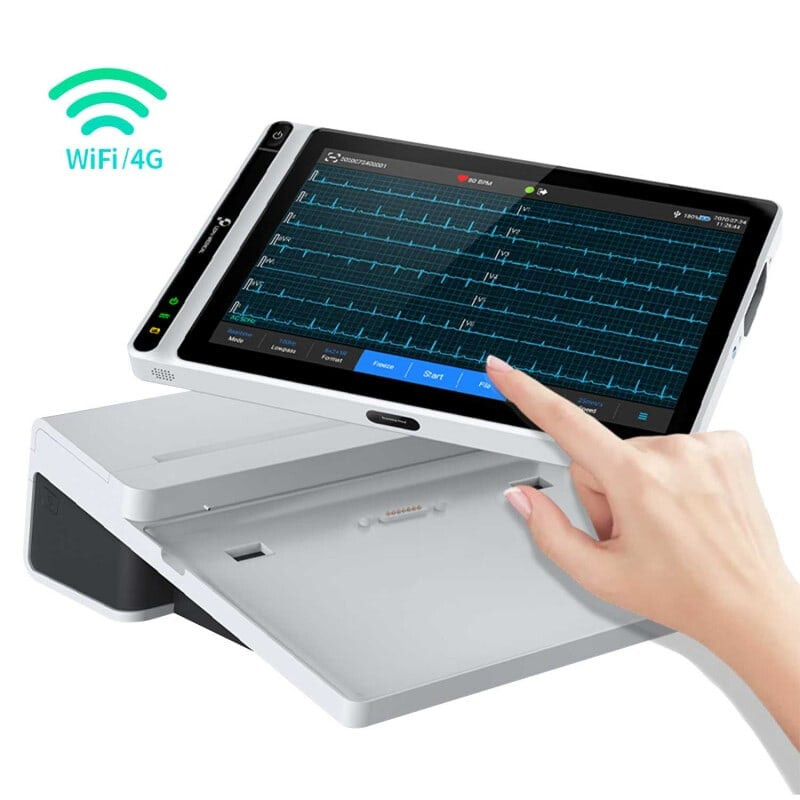

It can store, view, edit and upload patient data via wireless transmission of ECG data via WiFi and mobile networks. Patient data can be exported to USB flash disk via USB connector.
- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling
- automatic rate detection and marking
- automatic RR analysis, HRV, drug test, ECG event mode
- multi-format files: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- freeze ECG waveform on screen
- virtual keyboard and barcode scanning to insert patient information

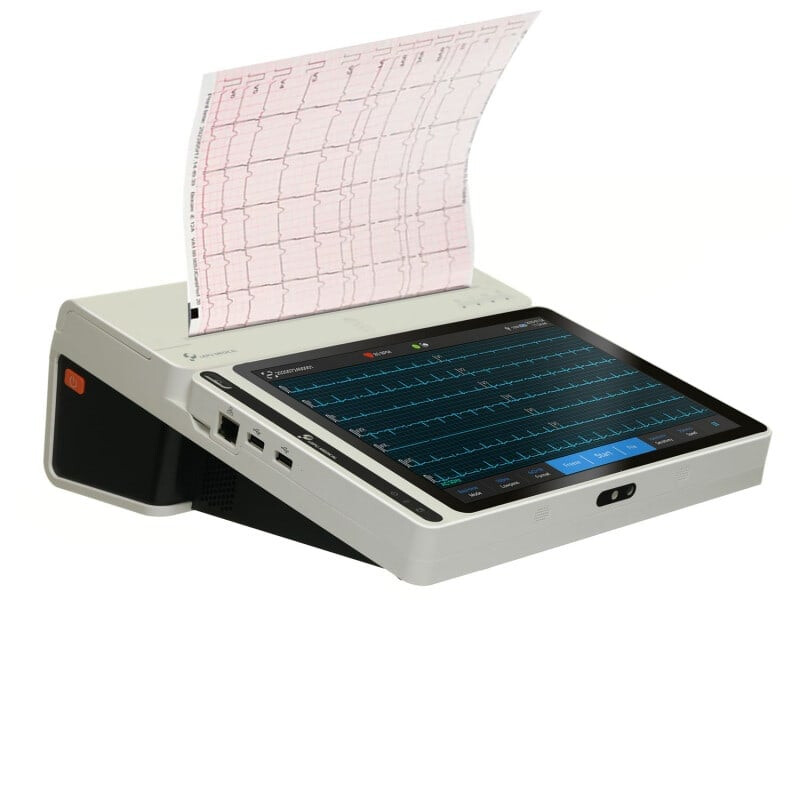

- built-in thermal printer
- external DC power supply and built-in rechargeable battery
- Charging port for recorder
Technical Specifications
- ECG Leads: 9,12 synchronous acquisition
- A/D Resolution: 24 bits
- Heart Rate Range: 30 bpm-300 bpm ± 1 Input Circuit Current: = 10 nA
- Sensitivity: Auto, 2.5, 5, 10, 20, 40 mm/mV, less than ± 5% error
- Print Speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, less than ± 3% error
- Sampling Rate: 32,000 samples/sec
- Filters: AC (50-60 Hz, off), EMG (25-35-45 Hz off), ADS (0.01-0.05-0.32-0.67 Hz), low pass filter (75-100-150-300 Hz off)
- Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)
- Minimum selectable signal: 20 µVp-p
Electrical
- Internal noise: = 12.5 µV
- Input impedance: = 100 MO (10 Hz)
- Calibration voltage: 1mV ± 2%
- Depolarization voltage: ± 900 mV, ± 5%
- Commode mode rejection: = 140 dB (AC filter on)
- Commode mode suppression: = 120 dB (AC filter off)
- Amplitude quantization: 0.95 µV/LSB
- Recovery time after discharge: < 10 s
- Display: 10.1" color touch screen
- Dimensions - weight: 27.4x28.8xh 11.1 cm - 2.5 kg

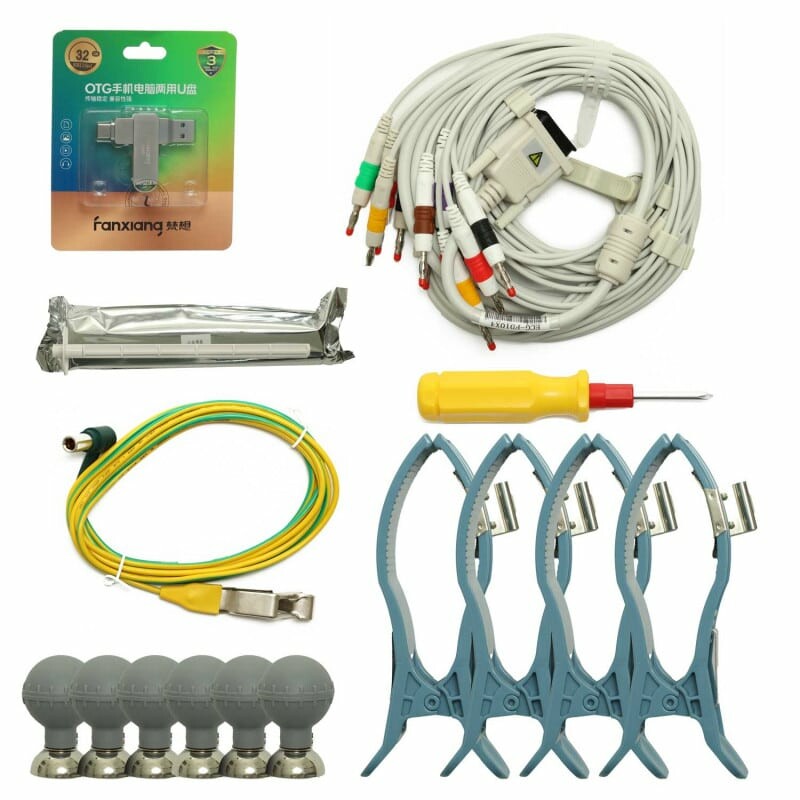

Standard accessories
- 1 ECG cable (IEC, Ø 4 mm, banana connector)
- 6 pcs. precordial suction electrodes for adults (Ø 4 mm)
- 4 pcs. adult limb clamp electrodes
- 1 thermal paper roll - 20 m x 216 mm
- 1 rechargeable lithium battery
- 1 power adapter
