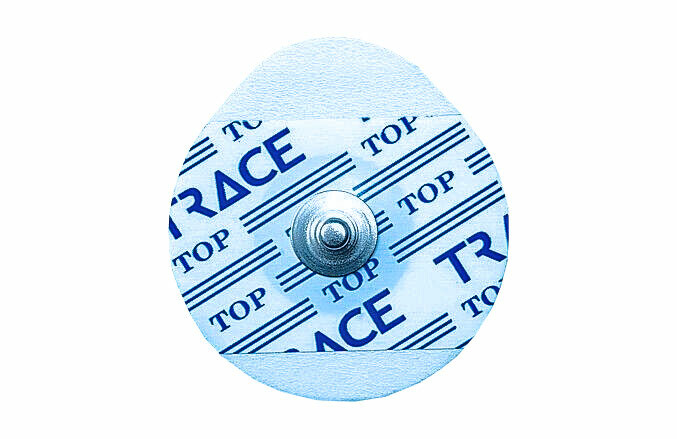

ECG electrode - Top Trace 45 mm - 50 pieces
These electrodes have been tested by several GP practices and doctor's assistants. They have good adhesive power but are also easy to remove so that you will not have any problems with excessive adhesive force, for example with hair.
White foam electrodes. Teardrop shaped, centered with fixed gel column. Good adhesive medical grade glue. It eliminates the problems associated with other liquid gels and provides low impedance. It contains an aqueous content of a polymerized hydrogel composition, being non-irritating, non-sensitizing and non-cytotoxic to the skin.
Specifications:
- Disposable ECG electrode, white FOAM type
- Size 45 x 42 mm, drop-shaped, centered snap fastener with conductive solid gel column
- All electrodes are latex-free
- Specially designed for the difficult adhesion conditions encountered during standard patient monitoring
Electrical specifications:
- DC Offset Voltage 0.12 mV
- AC impedance 10 Hz 60 (OHMS)
- DC Offset 5 sec after capacitor discharge 6.5 (Mv)
- Recovery Slope 30 second interval 0.0 (mV/sec)
- AC Impedance after defib. 46 (OHMS)
Certification:
- MDR 2017/745
- ANSI / AAMI EC12: 2000 standard
- Class I device. CE certified
